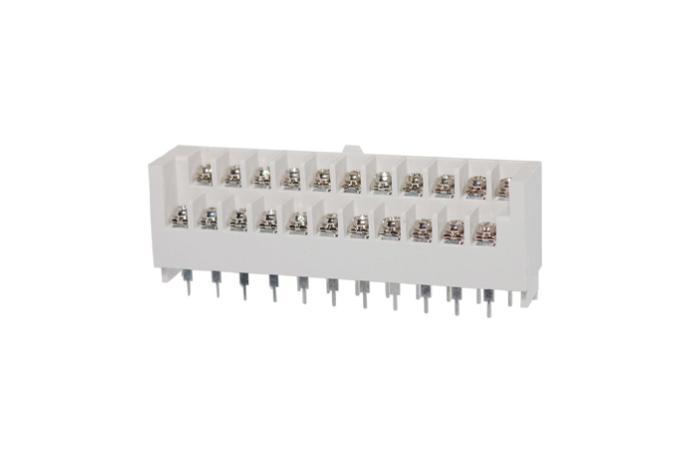

제품 상세 정보
● Rating : 250V 10A
● Insulation Resistance : More Than 1000MΩ DC 500V
● Withstand Voltage : AC2000V Per Minute
● Wire Size / Range : AWG18~26
● Maximum Acceptable Temperature : -40°C ~ +85°C
A-B Dimension
|
P |
22 |
34 |
|
A |
92.4 |
138.3 |
|
B |
76.2 |
121.92 |
|
No |
Component Part |
Material |
Standard |
Plated |
Remark |
|
1 |
Frame |
P.B.T. |
UL94V-0 |
- |
- |
|
2 |
Terminal #1 |
BRASS |
C2680R |
Sn |
- |
|
3 |
Terminal #2 |
BRASS |
C2680R |
Sn |
- |
|
4 |
Screw |
SWCH10A |
- |
Ni |
M3 * 6 |
|
5 |
WASHER |
SPCC |
Ni |
□6 * 6 |
