RUGGED, THERMOPLASTIC CONNECTORS

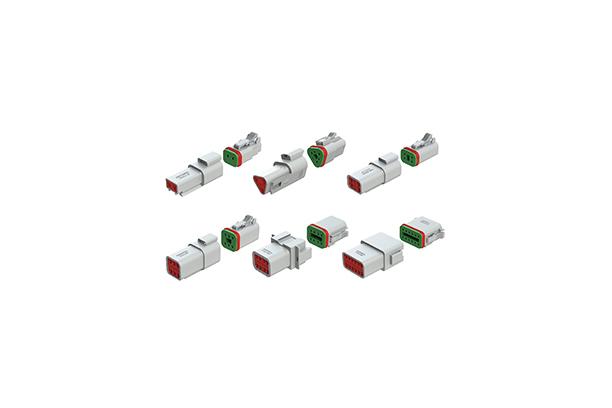

Amphenol Sine Systems AT Series™ connectors are designed as an IP68/69K rated (mated), high-performance, cost-effective, thermoplastic solution with superior environmental seals, seal retention capabilities and are designed for use with 14-22AWG with size 16 contacts handling up to 13A. Also available in BoardLock™, StructurePlus™, HYPERBUSS™ and PanelMate™ Series connectors. In addition, all of the AT Series™ connectors have been developed to be compatible with all other existing standard products industry-wide.

• Available in 2, 3, 4, 6, 8, 12, 13 (Mixed), 15 (Mixed) and 18 positions
• 14-22AWG, 13A, Size 16
• Thermoplastic housing with integrated latch for mating
• High temperature silicone seals provide superior sealing
• Wedgelocks ensure proper contact alignment & retention
• Compatible with existing standard products industry-wide
• Applications: Marine, Heavy Equipment, Agricultural, Automotive, Alternative Energy
