POWER & SIGNAL CONNECTORS PERFECT FOR OFFSHORE AND INDUSTRIAL USE

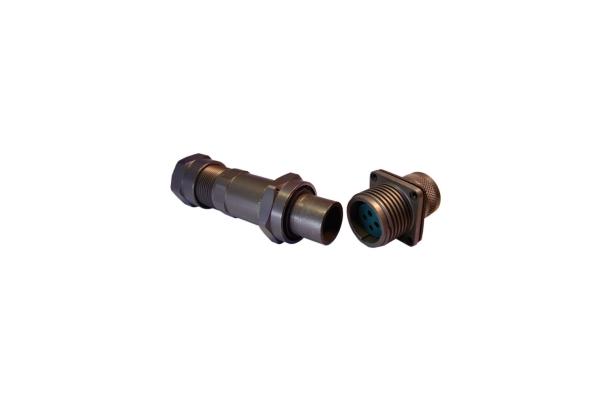

Heavy-duty, multi-pin, electrical connector designed for rugged and harsh environments. One-piece, two-keyed shell, coupling nut, cable adapter, gland and clamp nut are constructed of high-grade machined aluminum with a hard coat finish for superior corrosion resistance. Formerly Pyle Star Line.

Features

• UL & CSA
  listed to UL1977/CSA C22.2 requirements
• Environmental Resistance
  Design and materials withstand the most challenging operating conditions. Series has an IP 68-8 rating.
• Solder, Crimp and Pressure Terminals Available
• Easily Accessible Wire Terminals
  Conductors are readily terminated to contacts. Cable housings are slipped over conductors or leads after terminating. Cumbersome handling and seating of inserts with conductors attached is eliminated.
• Large Wiring Space
  Ample wiring space is provided in cable housings and hardware.
• Reversible Inserts
  A full range of contact inserts for power, signal and mixed applications are available. All are interchangeable and reversible to suit specific needs.
• Double-Lead Thread Coupling
  Modified acme thread does not clog under adverse conditions of ice, snow, sand or mud and provides the quick coupling feature.
• Hard Anodic Coating
  All machined aluminum parts finished with a hard, scratch-resistant coating per MIL-A-8625, type III. Dielectric strength 1800 volts. Heat resistance of 750°F.
• High Tensile Strength Aluminum
  Bar stock components precision machined. Points of impact designed for extra strength.
• Radsok® High Amperage Contacts
  Special arrangements are available with Radsok high amperage contacts. Standard Star-Line EX® inserts are not interchangeable with new Radsok contact insert arrangements.
• RoHS Compliant Product Available

Materials & Finishes

Electrical Data

Wire Range Sizes   18 to 777MCM

Current Rating

Mechanical

Operating Temperature  -67ºF to +257ºF (-55ºC to +125ºC)

Insulation Strip Length
