Young Poong

Young Poong

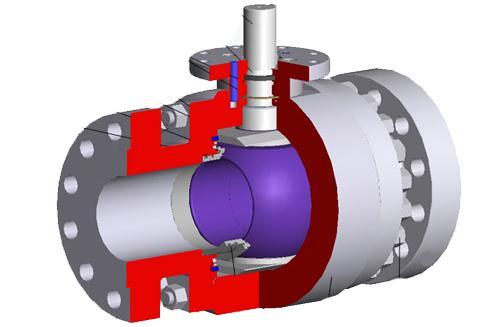

볼 밸브 (High Performance)

Model

Series

Valve


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Description

Pressure class : JIS 10K/20K/40K,
ANSI 150#/300#/600#, API 6D

Size : 15A to 650A, 1/2" to 26" Material : WCB, CF8, CF3, CF8M, CF3M, A105, F304
F316, other materials available on request End Connection
RF/FF Flange, Ring type joint, Large groove,
Small groove, Tongue & Groove, Butt weld
Option
- Double seal
- Vacuum service
- NACE
- Extended stem
- High temperature to 350°C

Features & Benefits Forged & Casting body, Soft & Metal seat
Self relief design, Fire safe design
Double block & bleed design(open & close position)
Emergency sealant fittings
ISO mounting pad
Double seal design(option)
Easy operation at high pressure
  Application Petroleum, Petrochemical, Low temperature service,
Water, Oil, Gas Service
