YOUIL GRINDING MACHINE

YOUIL GRINDING MACHINE

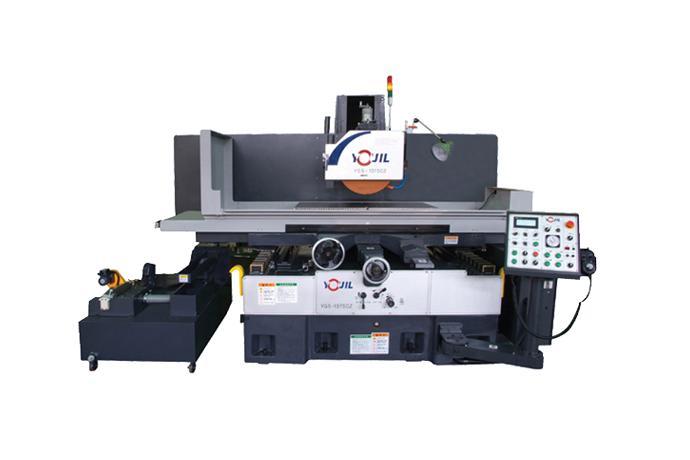

Precision Surface Grinding Machine (Saddle type)

Model

Series

Surface Grinding Machine (Servo Control System)


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

  Features

High-precision and high-efficiency full automatic cycle grinding by adopting the servo system.
(Saddle Type - 1 axis : Z)

Order-made grinding machine with various servo control modes
- Easier control method than common grinding machines
- High-precision fine grinding available
- 12 steps of 0.001~0.003mm cutting infeed (Select Set Control)
- 9 stemps of 0.001~0.01mm milling infeed (Select Set Control)

Digital positioning
Input by the ㎛ unit and the remaining volume is indicated during the grinding.

  Specification

Item

unit

YGS-
137SCZ

YGS-
116SCZ

YGS-
96SCZ

YGS-
65SCZ

YGS-
63SCZ

Capcity

Electric magnetic chuck

mm

1200×600

1000×500

800×500

600×500

600×300

Max. distance between table surface and grinding wheel center

mm

0~845

0~697

0~697

0~697

0~522

Table

Traverse speed range(per min)

m/min

0.5~20

0.5~20

0.5~20

0.5~20

0.5~20

Cross movement-hand

Hand feed per revolution

mm

5

5

5

5

5

Graduation of hand wheel

mm

0.02

0.02

0.02

0.02

0.02

Cross movement-hydraulic

Intermittent feed

mm

0.5~20

0.5~20

0.5~20

0.5~20

0.5~20

Continuous feed

m/min

0~1

0~1

0~1

0~1

0~1

Grinding head

Automatic feed per table stroke

mm

0.001, 0.002, 0.003, 0.004, 0.005, 0.006,
0.008, 0.010, 0.015, 0.020, 0.025, 0.030

Manual down feed

Hand feed per revolution

mm

0.1(×1), 1(×10), 2.5(×25)

Graduation of hand wheel

mm

0.001(×1), 0.01(×10), 0.025(×100)

Grinding Wheel

Diameter(50Hz/60Hz)×Width×Bore

mm

φ510×50
×φ127

φ355/φ305
×50×φ127

φ355/φ305
×38×φ127

φ355/φ305
×38×φ127

φ355/φ305
×38×φ127

Speed (50Hz/60Hz)

r.p.m

1000/1200

1500/1800

1500/1800

1500/1800

1500/1800

Motors

Grinding wheel spindle

Kw/p

7.5/6

5.5/4

3.7/4

3.7/4

3.7/4

Servo-vertical

Kw

1.2

0.9

0.9

0.9

0.9

Servo-cross

kw

-

-

-

-

-

Weight (about)

kg

6500

5600

5000

3000

2200

Wheel cover model

YGS/CVR-510S

YGS-CVR-305A
