Features
These series are widely selected for effective grinding of precision parts in various fields of mold, jig & fixture and IT industry as high-precision form grinding machine with 500×150 (200)mm grinding capacity.
X,Y,Z-Auto : YGS-50A
X-Auto,Y,Z-Manul : YGS-46XA
Manual : YGS-46 (Bed)

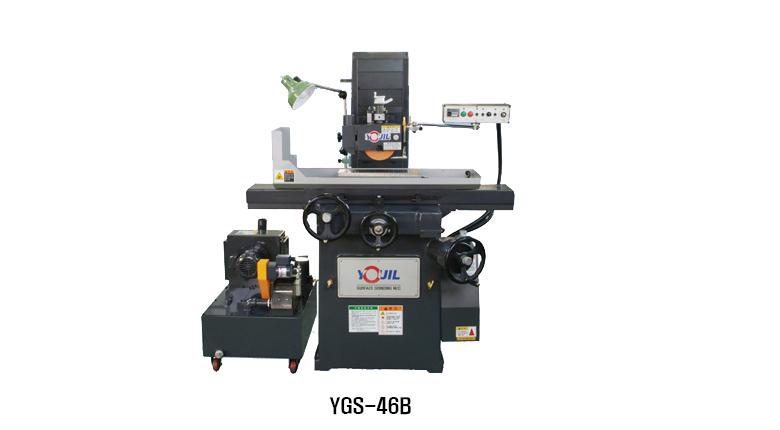

Manual : YGS-52B, 46B (Ball type)
Specification
|
Item |
unit |
YGS-52B |
YGS-46B |
|||
|
Capcity |
Electric magnetic chuck |
mm |
450×200(Flat) |
400×150(Flat) |
||
|
Max. distance between table surface |
mm |
0~540 |
0~465 |
|||
|
Table |
Traverse speed range(per min) |
m/min |
- |
- |
||
|
Cross movement-hand |
Hand feed per revolution |
mm |
5 |
5 |
||
|
Graduation of hand wheel |
mm |
0.02 |
0.02 |
|||
|
Cross movement-hydraulic |
Intermittent feed |
mm |
- |
- |
||
|
Continuous feed |
m/min |
- |
- |
|||
|
Grinding head |
Automatic feed per table stroke |
mm |
- |
- |
||
|
Manual down feed |
Fine feed |
Graduation of hand wheel |
mm |
0.05 |
0.05 |
|
|
Graduation of hand wheel |
mm |
0.001 |
0.001 |
|||
|
Hand feed per revolution |
mm |
2 |
2 |
|||
|
Graduation of hand wheel |
mm |
0.01 |
0.01 |
|||
|
Grinding Wheel |
Diameter×Width×Bore |
mm |
Ø180×9~20×Ø31.75 |
Ø180×9~20×Ø31.75 |
||
|
Speed (50Hz/60Hz) |
r.p.m |
3000/3600 |
3000/3600 |
|||
|
Motors |
Grinding wheel spindle |
Kw/p |
1.0/2(1.5/2-Option) |
1.0/2 |
||
|
Hydraulic pump |
Kw/p |
- |
- |
|||
|
Weight (about) |
kg |
1500 |
1300 |
|||
|
Wheel cover model |
|
YGS/CVR-180B |
YGS/CVR-180B |
|||
Machine Dimensions
|
Division |
A |
B |
C |
D |
E |
F |
G |
|
YGS-52B |
740 |
1460 |
2020 |
950 |
1370 |
1500 |
1925 |
|
YGS-46B |
720 |
1450 |
1970 |
880 |
1280 |
1410 |
1800 |
Working Area
|
Division |
YGS-52B |
YGS-46B |
|
a |
500 |
465 |
|
b |
180 |
180 |
|
c |
19 |
19 |
|
d |
130 |
105 |
|
e |
115 |
85 |
|
f |
289 |
242 |
|
g |
204 |
154 |
