YOUIL GRINDING MACHINE

YOUIL GRINDING MACHINE

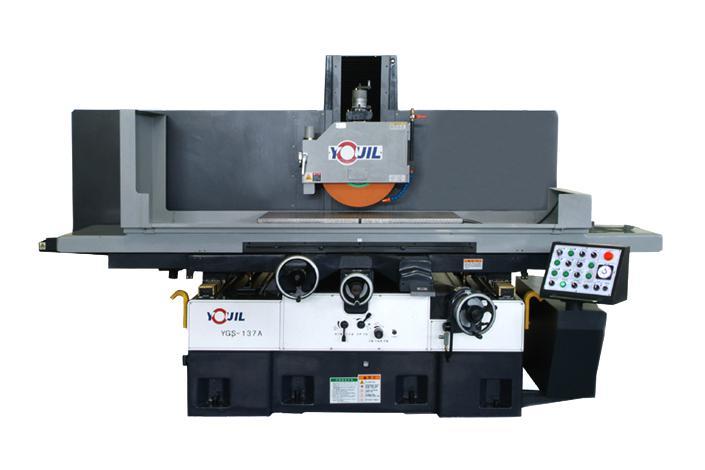

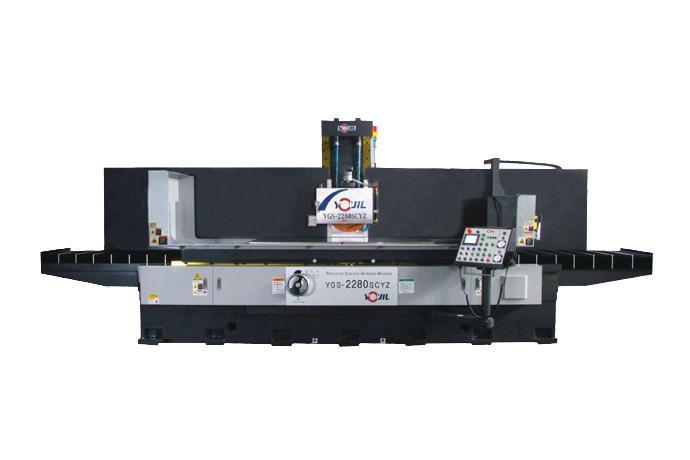

Precision Surface Grinding Machine (Column Type)

Model

Series

Surface Grinding Machine (Servo Control System)


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

  Features

High-precision and high-efficiency full automatic cycle grinding by adopting the servo system.
(Column Type - 2 axes : Y,Z)

Order-made grinding machine with various servo control modes
- Easier control method than common grinding machines
- High-precision fine grinding available
- 12 steps of 0.001~0.003mm cutting infeed (Select Set Control)
- 9 stemps of 0.001~0.01mm milling infeed (Select Set Control)

Digital positioning
Input by the ㎛ unit and the remaining volume is indicated during the grinding.


  Specification

Item

unit

YGS-
2590SCYZ

YGS-
2290SCYZ

YGS-
3080SCYZ

YGS-
2280SCYZ

YGS-
1670SCYZ

YGS-
1360SCYZ

Capcity

Electric magnetic chuck

mm

2500×900

2000×900

3000×800

2000×800

1600×700

1300×600

Max. distance between table surface and grinding wheel center

mm

0~950

0~950

0~950

0~950

0~950

0~845

Table

Traverse speed range(per min)

m/min

0~25

0~25

0~25

0~25

0~25

0~25

Cross movement-hand

Hand feed per revolution

mm

0.1(×), 1(×10), 10(×100)

Graduation of hand wheel

mm

0.001(×1), 0.01(×10), 0.1(×100)

Cross movement-hydraulic

Intermittent feed

mm

1~50

1~50

1~50

1~50

1~50

1~50

Continuous feed

m/min

0~4

0~4

0~4

0~4

0~4

0~4

Grinding head

Automatic feed per table stroke

mm

0.001, 0.002, 0.003, 0.004, 0.005, 0.006, 0.008,
0.010, 0.015, 0.020, 0.025, 0.030

Manual down feed

Hand feed per revolution

mm

0.1(×1), 1(×10), 2.5(×25)

Graduation of hand wheel

mm

0.001(×1), 0.01(×10), 0.025(×100)

Grinding Wheel

Diameter×Width×Bore

mm

φ510×50
×φ127

φ510×50
×φ127

φ510×50
×φ127

φ510×50
×φ127

φ510×50
×φ127

φ510×50
×φ127

Speed (50Hz/60Hz)

r.p.m

1000/1200

1000/1200

1000/1200

1000/1200

1000/1200

1000/1200

Motors

Grinding wheel spindle

Kw/p

15/6

15/6

15/6

15/6

15/6

7.5/6

Servo-vertical

Kw

2.0

2.0

2.0

2.0

2.0

1.2

Servo-cross

kw

1.2

1.2

1.2

1.2

1.2

0.9

Weight (about)

kg

15600

15000

16000

14300

12000

7100

Wheel cover model

YGS-CVR-510C
