Features

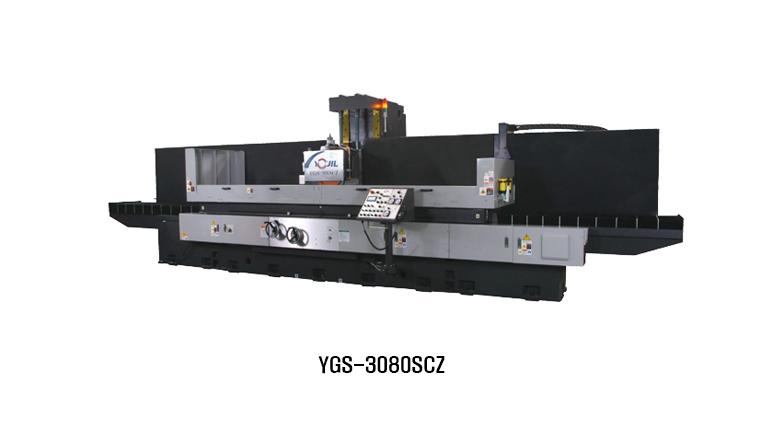

These series,column type surface grinding machines, are featured by widely ranging from 600~800mm of cross working width to 900mm passing the limit of single column mode based on accumulated know-how derived from long experience.
Suitable for wide range of grinding from heavy grinding to precision grinding
Maintenance of high strength due to high-elasticity structure of base,column and table
Convenient grinding thanks to ergonomic design
- Handle intensively arranged on the front of base
- Control panel setting cross travel
- Easy and convenient operation
Specification
|
Item |
unit |
YGS-3080SCZ |
YGS-2280SCZ |
||
|
Capcity |
Electric magnetic chuck |
mm |
3000×800 |
2000×800 |
|
|
Max. distance between table surface and grinding wheel center |
mm |
0~950 |
0~950 |
||
|
Table |
Traverse speed range(per min) |
m/min |
0~25 |
0~25 |
|
|
Cross movement-hand |
Hand feed per revolution |
mm |
5 |
5 |
|
|
Graduation of hand wheel |
mm |
0.025 |
0.025 |
||
|
Cross movement-hydraulic |
Intermittent feed |
mm |
2~15 |
2~15 |
|
|
Continuous feed |
m/min |
0.2~1.0 |
0.2~1.0 |
||
|
Grinding head |
Automatic feed per table stroke |
mm |
0.001~0.03 |
0.001~0.03 |
|
|
Manual down feed |
Hand feed per revolution |
mm |
0.1, 1.0, 2.5 |
0.1, 1.0, 2.5 |
|
|
Graduation of hand wheel |
mm |
0.001, 0.01, 0.025 |
0.001, 0.01, 0.025 |
||
|
Grinding Wheel |
Diameter×Width×Bore |
mm |
Ø510×50×Ø127 |
Ø510×50×Ø127 |
|
|
Speed (50Hz/60Hz) |
r.p.m |
1000/1200 |
1000/1200 |
||
|
Motors |
Grinding wheel spindle |
Kw/p |
15/6 |
15/6 |
|
|
Hydraulic pump |
Kw/p |
7.5/6 |
5.5/6 |
||
|
Weight (about) |
kg |
16000 |
14300 |
||
|
Wheel cover model |
|
YGS/CVR-510C |
YGS/CVR-510C |
||
Machine Dimensions
|
Division |
A |
B |
C |
|
YGS-3080SCZ |
10500 |
3300 |
2800 |
|
YGS-2280SCZ |
6790 |
3200 |
2760 |
Working Area
|
Division |
YGS-3080SCZ |
YGS-2280SCZ |
|
a |
50 |
50 |
|
b |
415 |
415 |
|
c |
415 |
415 |
|
d |
810 |
810 |
|
e |
510 |
510 |
|
f |
950 |
950 |
