YOUIL GRINDING MACHINE

YOUIL GRINDING MACHINE

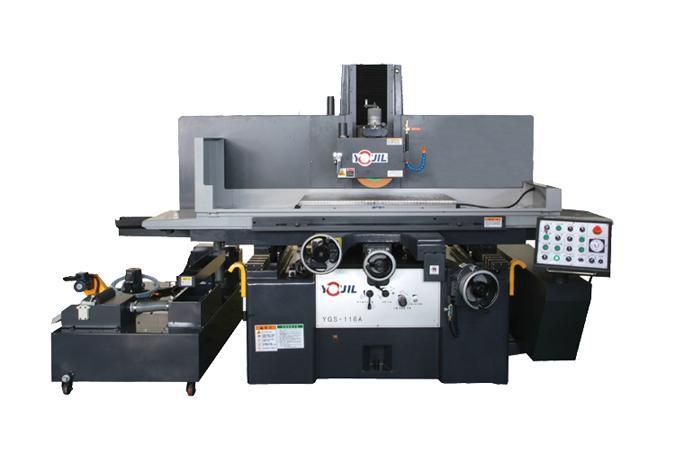

Precision Surface Grinding Machine

Model

Series

Surface Grinding


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

  Features

These series,various in size,are the most powerful saddletype common surface grinding machines that show high efficiency as well as high precision for large parts and molds.

High precision spindle and spindle motor with low vibration and noise
Durable and suitable for precision grinding

Intensive research planning and manufacture by high-elasticity structure
Excellent durability and heavy grinding available

4-Point suspension mode cross travel guide way
Long and high-precision 4-point suspension mode using LM guide for large machines(137A,116A) to V&V grooved guide way and both edges in the center.


  Specification

Item

unit

YGS-116A

Capcity

Electric magnetic chuck

mm

1000×500

Max. distance between table surface and grinding wheel center

mm

0~697

Table

Traverse speed range(per min)

m/min

0.5~20

Cross movement-hand

Hand feed per revolution

mm

5

Graduation of hand wheel

mm

0.02

Cross movement-hydraulic

Intermittent feed

mm

0.5~20

Continuous feed

m/min

0.1~1.0

Grinding head

Automatic feed per table stroke

mm

0.002~0.03

Manual down feed

Hand feed per revolution

mm

1.0

Graduation of hand wheel

mm

0.005

Grinding Wheel

Diameter(50Hz/60Hz)×Width×Bore

mm

Ø355/Ø305×50×Ø127

Speed (50Hz/60Hz)

r.p.m

1500/1800

Motors

Grinding wheel spindle

Kw/p

5.5/4

Hydraulic pump

Kw/p

3.7/4

Weight (about)

kg

5600

Wheel cover model



YGS/CVR-305






  Machine Dimensions

YOUIL GRINDING MACHINE Precision Surface Grinding Machine YGS-116A

Division

A

B

C

D

E

F

G

YGS-116A

1795

3440

4200

1670

2380

2660

2270






  Working Area

YOUIL GRINDING MACHINE Precision Surface Grinding Machine YGS-116A 1

Division

YGS-116A

a

50

b

262

c

262

d

500

e

355/305

f

697
