Product Name
Thicker Sheet Dual-Extrusion Line
Model Name
-
Size
-
Weight
-
Product Details
Product feature
Available for produce upto 30mmt PP sheet !
It has been provided with all of the necessary capabilities for it to function as a complete extrusion line for thicker sheet (6~30 mmt) manufacturing from PP, PE, PS and ABS material

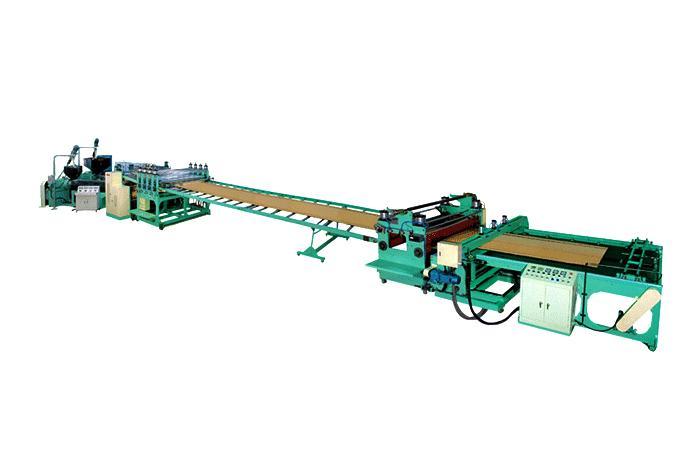

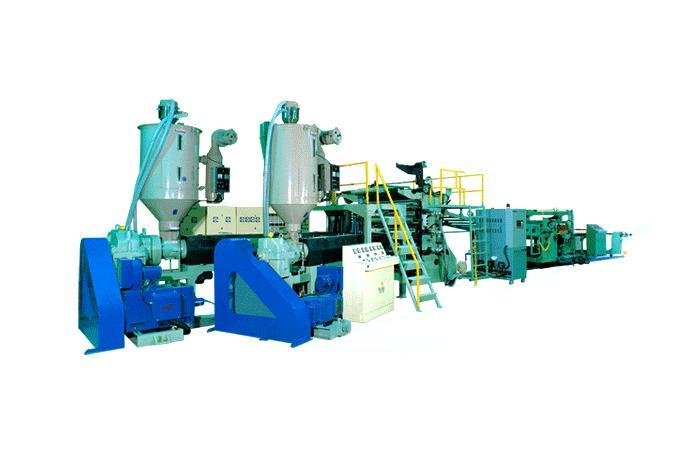

Product detailed view
Specification
| Item | YS-100TSM | YS-110TSM | YS-(130x90)x2ETSM | |
| General | Sheet thickness | 6 ~ 30 mmt | ||
| Width | 700 ~ 1200 mm | 900 ~ 1400 mm | 1000 ~ 2000 mm | |
| Extrusion out put | 90 ~ 120 kg/hr | 100 ~ 180 kg/hr | 300 kg/hr | |
| Extruder | Screw | Φ100 x LD = 30 | Φ120 x LD = 32 | (130x90) x LD = 32 |
| Material | SCM 4 | |||
| Cylinder | SACM 645 | |||
| Driving motor | DC 75 kw | DC 90 kw | DV 132 kw | |
| Screen changer |
Type | Oil hydrauilc | ||
| Operation | Semi-auto type | |||
| T-die | Die width | 1000 ~ 1400 mm | 1000 ~ 1400 mm | 1200 ~ 2200 mm |
| Material | SCM 4 | |||
| Heater | Cartirige heater | |||
| Control panel | Type | Cabinet board | ||
| Heating controller | 11 zone | 11 zone | 18 zone | |
| Polishing roll unit |
Type | 3 roll vertical | ||
| Roll | Φ290 x 140 mm | Φ310 x 1400 mm | Φ400 x 2200 mm | |
| Driving motor | DC 1.5 kw | DC 2.2 kw | DC 2.2 kw | |
| Roll adjust | By air cyinder | |||
| Take up unit | Roll | Φ160 x 1400 mm | Φ160 x 1600 mm | Φ180 x 2200 mm |
| Driving motor | DC 2.2 kw | DC 3.7 kw | DC 3.7 kw | |
| Cutting unit | Trimming | (A) Straight Knife aaa(B) Ring knife aaa(C) Rotary saw | ||
| Length cutting | (A) Air press aaa(B) Motor press aaa(c)Tip saw cutt | |||
| Winder | Type | Disk slip drive | ||
| Winding diameter | Max, 450 mm Φ | |||
| Driving motor | 0.4 kw x 2 pcs | 0.4 kw x 2 pcs | 0.75 kw x 2 pcs | |
