This product is manufactured by
WOONYOUNG

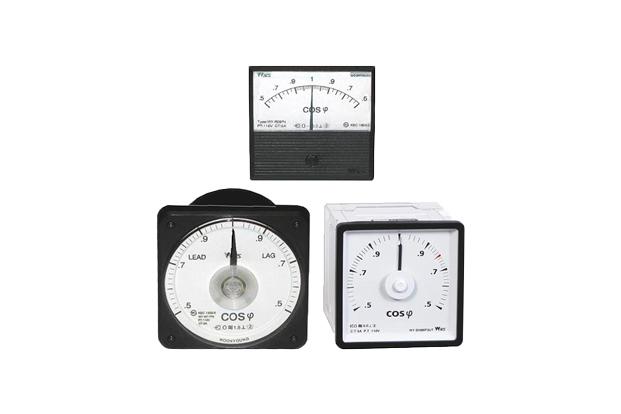

Panel Board Meters (Power-Factor(cos))
Model Name
WY-R06P3
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
132678
Product Name
Panel Board Meters (Power-Factor(cos))
Model Name
WY-R06P3, WY-R06P3U, WY-R08P3, WY-R08P3U, WY-R10P3, WY-R10P3U, WY-S47P3, WY-S47P3U, WY-S72P3, WY-S72P3U, WY-S96P3, WY-S96P3U, WY-SH96P3, WY-SH96P3T, WY-SH96P3U, WY-SH96P3UT, WY-W08P3, WY-W08P3U, WY-W11P3, WY-W11P3T, WY-W111P3U, WY-W111P3UT, WY-R06P4, WY-R06P4U, WY-R08P4, WY-R08P4U, WY-R10P4, WY-R10P4U, WY-S47P4, WY-S47P4U, WY-S72P4, WY-S72P4U, WY-S96P4, WY-S96P4U, WY-SH96P4, WY-SH96P4T, WY-SH96P4U
Size
-
Weight
-
Product Details
| Model No | WY-R06P3 WY-R06P3U WY-R08P3 WY-R08P3U WY-R10P3 WY-R10P3U WY-S47P3 WY-S47P3U WY-S72P3 WY-S72P3U WY-S96P3 WY-S96P3U WY-SH96P3 WY-SH96P3T WY-SH96P3U WY-SH96P3UT WY-W08P3 WY-W08P3U WY-W11P3 WY-W11P3T WY-W111P3U WY-W111P3UT WY-R06P4 WY-R06P4U WY-R08P4 WY-R08P4U WY-R10P4 WY-R10P4U WY-S47P4 WY-S47P4U WY-S72P4 WY-S72P4U WY-S96P4 WY-S96P4U WY-SH96P4 WY-SH96P4T WY-SH96P4U WY-SH96P4UT WY-W08P4 WY-W08P4U WY-W11P4 WY-W11P4T WY-W11P4U WY-W11P4UT |
|---|---|
| TYPE | 역률계(PF) (각형/광각형/DIN) |
| Certification | |
| Rating | AC5A, 110V, 220V, 190/√3V, 380/√3V, 50/60Hz |
| Input | AC1~5A, 110V, 220V, 190/√3V, 380/√3V |
| Output | - |
| Capacity | - |
Specifications and Features
· Operating Tempurature
-10℃∼50℃(With Non condensing)
· Humidity
80% RH
· Operating Principle
Moving coil type ( ) : DC Ampere meter, DC Volt meter.
Rectifier type ( ) : AC Ampere meter and AC Volt meter.
Transducer type ( ) : Watt meter, Var meter, PF meter and Hz meter.
Moving iron type ( ) : AC Ampere meter.
· Full scale deflection : 90。& 240。
