product Image

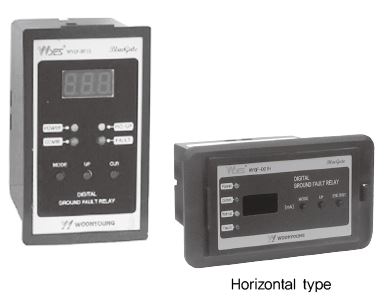

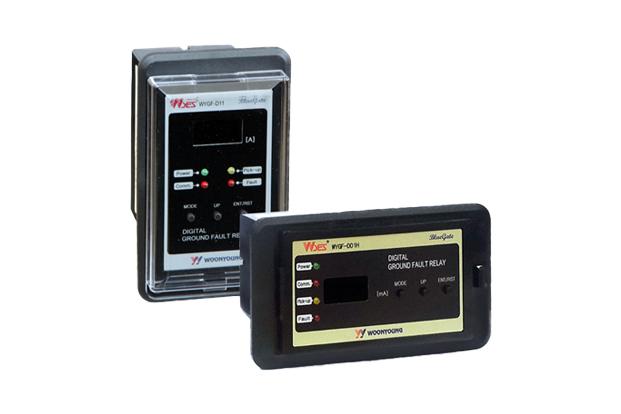

Ground Fault Relay (Digital-1ch type)
Model Name
WYGF-D01S
Series
Ground Fault Relay
View All
Data
Catalog-WOONYOUNG-Ground Fault Relay (Digital-1ch type)
Manufacturer information
provider logo
WOONYOUNG

Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more

Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
132645
Product Name
Ground Fault Relay (Digital-1ch type)
Model Name
WYGF-D01S, WYGF-D01T, WYGF-D01HT, WYGF-D11S, WYGF-D11T, WYGF-D11HT
Size
-
Weight
-
Product Details

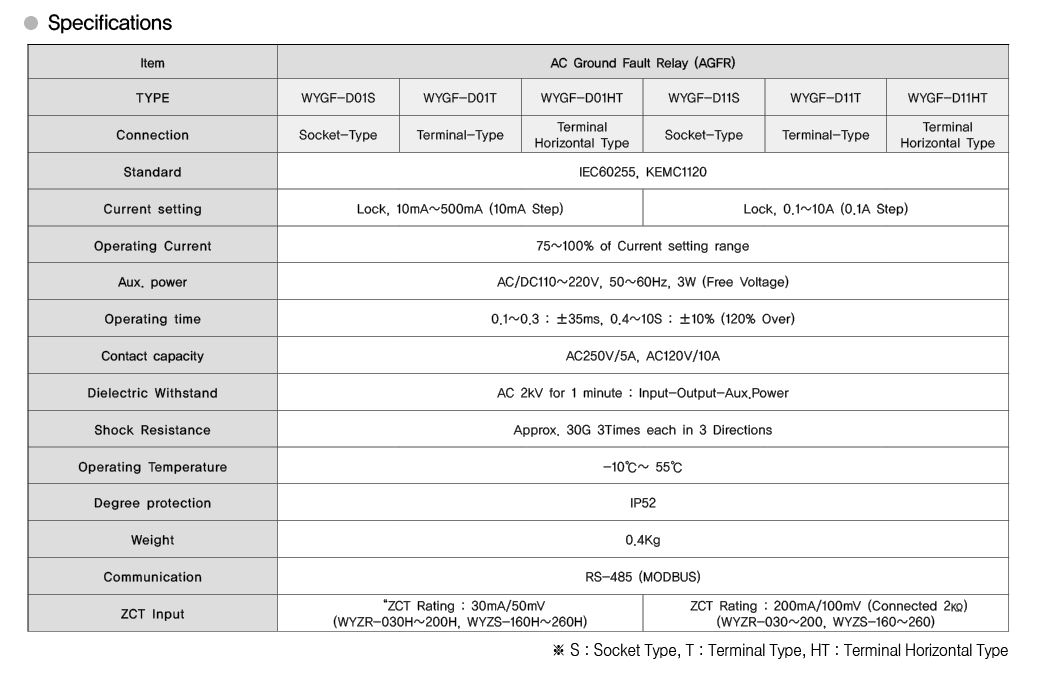

Model No WYGF-D01S WYGF-D01T WYGF-D01HT WYGF-D11S WYGF-D11T WYGF-D11HT
TYPE Digital type(1ch)
Certification
Rating AC/DC110~220V
Input 110VAC 110VDC 220VAC 220VDC
Output LOCK 10mA~500A 0.1A~10A
Capacity



Specifications and Features

This relay is composed of high reliability and high function circuit by applied digital technology of the leaked(grounding) relay according to the production of KSC8328. This is AGFR which is possible for setting the broad function of light grounding and heavy grounding in general industrial and in the existing grid of KEPCO, subway, factory, building and plants. in addition and made for alarm system and trip element composed of zero phase sequence current transformer(ZCT).

ㆍIndicating and alarming the grounding(leaked) state of the  electric line by detector and digital numbers (FND) in each circuit.

ㆍCan analyse the after-trouble state by storing the Memory of  the ground current and number of ground line.

ㆍCan detect the condition of internal circuit and software  with self diagnosis function.

ㆍNo influence surge from the outside builtin surge protect  circuit.

ㆍCan choose and setting for reset type(auto/manual) and  buzzer on/off.

ㆍCommunication support by MODBUS RS-485.

ㆍHigh sensitivity setting (10mA~500mA)
