This product is manufactured by
WOONYOUNG
Noise Filter Inverter output-Multi-Stage
Model Name
WYFTH05T1C
Data
WYFTH05_30T1A.dwg
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
131800
Product Name
Noise Filter Inverter output-Multi-Stage
Model Name
WYFTH05T1C, WYFTH10T1C, WYFTH15T1C, WYFTH20T1C, WYFTH30T1C, WYFTH05T1CD, WYFTH10T1CD, WYFTH15T1CD, WYFTH20T1CD, WYFTH30T1CD
Size
-
Weight
-
Product Details
| Model No | WYFTH05T1C WYFTH10T1C WYFTH15T1C WYFTH20T1C WYFTH30T1C WYFTH05T1CD WYFTH10T1CD WYFTH15T1CD WYFTH20T1CD WYFTH30T1CD |
|---|---|
| TYPE | 3Phase 500V Inverter output type |
| Certification | |
| Rating | 500V |
| Input | 500V |
| Output | |
| Capacity | 5A 10A 15A 20A 30A |

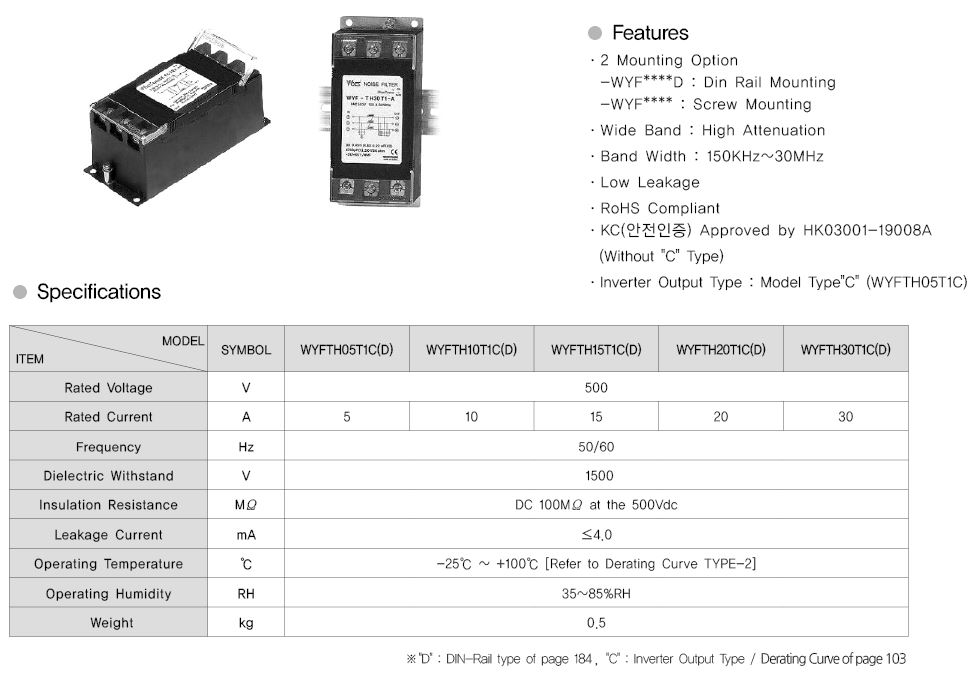

Specifications and Features
ㆍ2 Mounting Option
-WYF****D : Din Rail Mounting
-WYF**** : Screw Mounting
ㆍWide Band : High Attenuation

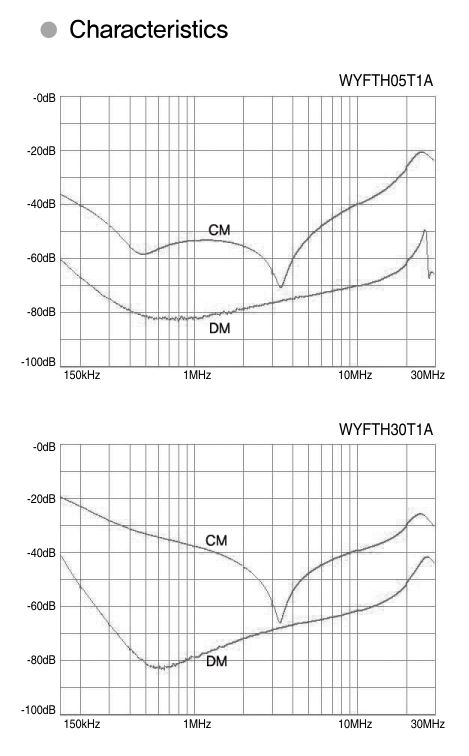

ㆍBand Width : 150KHz~30MHz
ㆍLow Leakage
ㆍRoHS Compliant
ㆍKC(안전인증) Approved by HK03001-19008A (Without "C" Type)
ㆍInverter Output Type : Model Type"C" (WYFTH05T1C)
