This product is manufactured by
WOONYOUNG

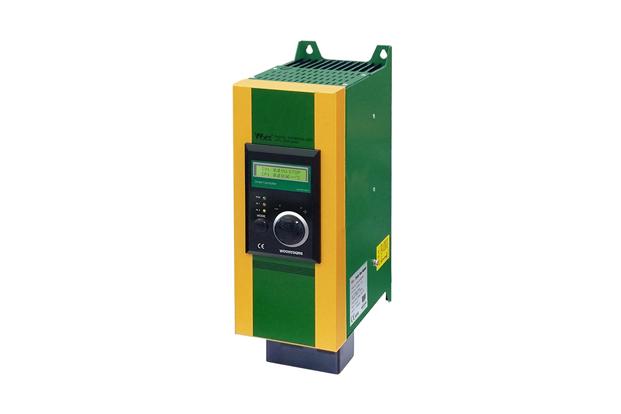

Thyristor Unit 1Phase 90~500V
Model Name
WYU-SD200SM
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
131727
Product Name
Thyristor Unit 1Phase 90~500V
Model Name
WYU-SD200SM, WYU-SD250SM, WYU-SD320SM
Size
-
Weight
-
Product Details
| Model No | WYU-SD200SM WYU-SD250SM WYU-SD320SM |
|---|---|
| TYPE | 1Phase |
| Certification | |
| Rating | 90V~500V |
| Input | 1VDC~5VDC DC4~20mA |
| Output | 90V~500V |
| Capacity | 200A 250A 320A |
Specifications and Features
As a single-phase digital power control unit, this product has an option to select phase control or cycle control, has an option to select a constant voltage, a constant current or a constant power on an LCD to enable any correction with one product, displays the control state, output current, radiator state, etc. on an LCD to notify the load conditions, has alarm contacts for safer use, and adopts a RS-485 communication method to be monitored even remotely.
