This product is manufactured by
WOONYOUNG

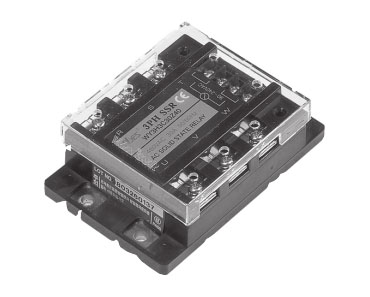

Solid State Relay (3P-AC Load type)
Model Name
WY3H3C10Z4
Data
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
131655
Product Name
Solid State Relay (3P-AC Load type)
Model Name
WY3H3C10Z4, WY3H3C20Z4, WY3H3C30Z4, WY3H3C40Z4, WY3H3C50Z4, WY3H3C60Z4, WY3H3C80Z4, WY3H3C10Z40, WY3H3C20Z40, WY3H3C30Z40, WY3H3C40Z40, WY3H3C50Z40, WY3H3C60Z40, WY3H3C80Z40, WY3H3C10R4, WY3H3C20R4, WY3H3C30R4, WY3H3C40R4, WY3H3C50R4, WY3H3C60R4, WY3H3C80R4, WY3H3C10R40, WY3H3C20R40, WY3H3C30R40, WY3H3C40R40, WY3H3C50R40, WY3H3C60R40, WY3H3C80R40
Size
-
Weight
-
Product Details

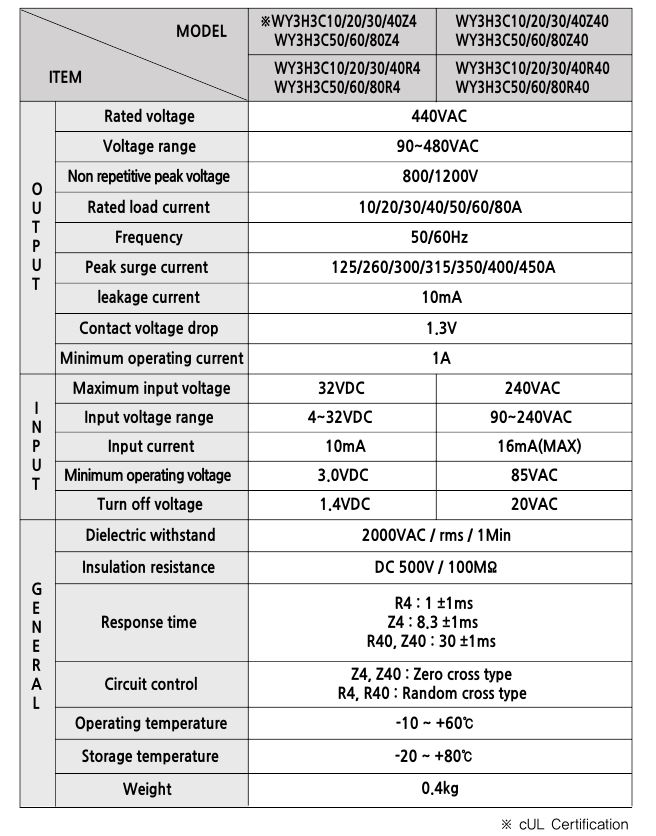

| Model No | WY3H3C10Z4 WY3H3C20Z4 WY3H3C30Z4 WY3H3C40Z4 WY3H3C50Z4 WY3H3C60Z4 WY3H3C80Z4 WY3H3C10Z40 WY3H3C20Z40 WY3H3C30Z40 WY3H3C40Z40 WY3H3C50Z40 WY3H3C60Z40 WY3H3C80Z40 WY3H3C10R4 WY3H3C20R4 WY3H3C30R4 WY3H3C40R4 WY3H3C50R4 WY3H3C60R4 WY3H3C80R4 WY3H3C10R40 WY3H3C20R40 WY3H3C30R40 WY3H3C40R40 WY3H3C50R40 WY3H3C60R40 WY3H3C80R40 |
|---|---|
| TYPE | WY3H type (UL) |
| Certification | cUL UL |
| Rating | 440VAC |
| Input | 4VDC~32VDC 90VAC~240VAC |
| Output | 440VAC |
| Capacity | 10A 20A 30A 40A 50A 60A 80A |
Specifications and Features
This is a 3-phase general type product. This product featuring electric and environmental resistance reinforced by using highly reliable parts carries a capacity of AC90~480V, 10-80A It is an general type SSR is equipped with LED according to input control.
• cUL Std. No : . UL508
