This product is manufactured by
WOONYOUNG
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
131549
Product Name

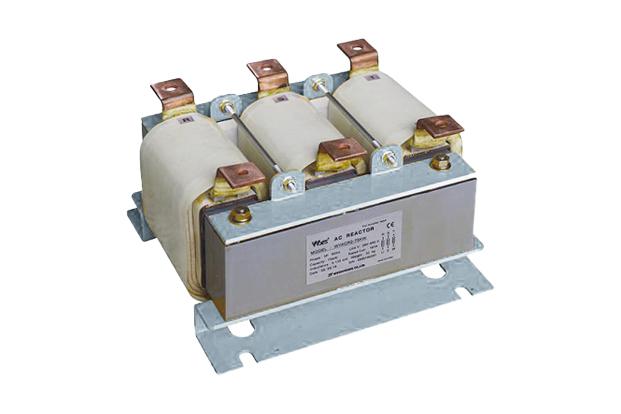

Input(ACR) Reactor
Model Name
WYACR2-11, WYACR2-15, WYACR2-18.5, WYACR2-22, WYACR2-30, WYACR2-37, WYACR2-45, WYACR2-55, WYACR2-75, WYACR2-90, WYACR2-110, WYACR2-132, WYACR2-160, WYACR2-185, WYACR2-220, WYACR2-250, WYACR2-280, WYACR2-315, WYACR2-350
Size
-
Weight
-
Product Details
| Model No | WYACR2-11 WYACR2-15 WYACR2-18.5 WYACR2-22 WYACR2-30 WYACR2-37 WYACR2-45 WYACR2-55 WYACR2-75 WYACR2-90 WYACR2-110 WYACR2-132 WYACR2-160 WYACR2-185 WYACR2-220 WYACR2-250 WYACR2-280 WYACR2-315 WYACR2-350 |
|---|---|
| TYPE | Input Reactor |
| Certification | |
| Rating | 3Ø-220 |
| Input | 3Ø-220 |
| Output | 76A~1600A |
| Capacity | 15kVA~350kVA |
Specifications and Features
• Rating : 3Ø 220V / 50/60 Hz
• Dielectric withstand : AC 3000V / 1min
• Insulation resistance : DC 500V / 100MΩ
• IP Class : IP20
• Sound level : Less than 65db
• Operating temp. : -20℃ ~ +40℃
