This product is manufactured by
WOONYOUNG

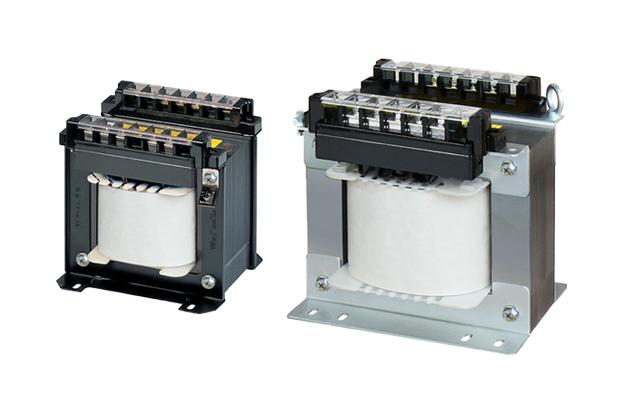

1Phase UL Type Transformer
Model Name
WY21-100UL
Manufacturer information
WOONYOUNG
Various electronic control equipment manufacturer, UL transformer, UL trans, NCT, Reactor, SSR, TPR, SMPS, SPD, Noise filter and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
WOONYOUNG
Product Type
Machine
Brand
-
SKU
131432
Product Name
1Phase UL Type Transformer
Model Name
WY21-100UL, WY21-200UL, WY21-300UL, WY21-500UL, WY21-750UL, WY21-1KUL, WY21-1.5KUL, WY21-2KUL, WY21-3KUL, WY21-5KUL
Size
-
Weight
-

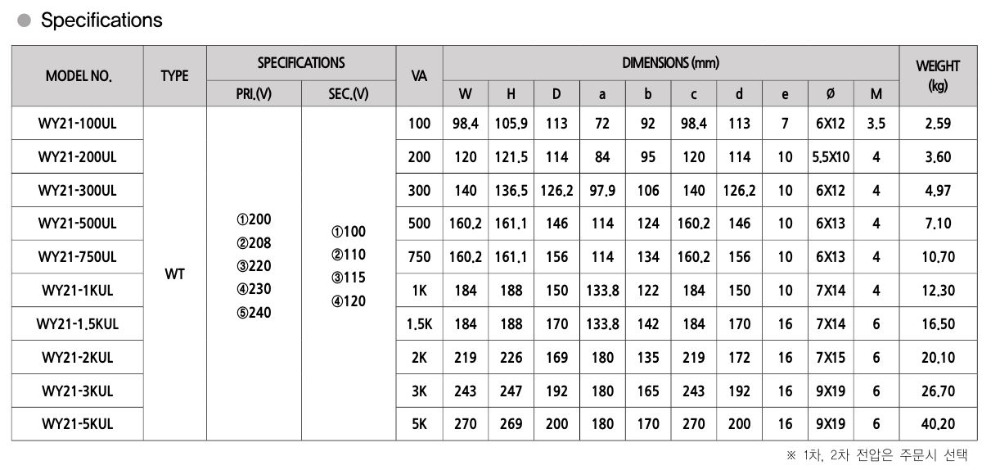

Product Details
| Model No | WY21-100UL WY21-200UL WY21-300UL WY21-500UL WY21-750UL WY21-1KUL WY21-1.5KUL WY21-2KUL WY21-3KUL WY21-5KUL |
|---|---|
| TYPE | 1Phase UL Type Transformer |
| Certification | UL |
| Rating | |
| Input | 200VAC 208VAC 220VAC 230VAC 240VAC |
| Output | 100VAC 110VAC 115VAC 120VAC |
| Capacity | 100VA~5kVA |
Specifications and Features

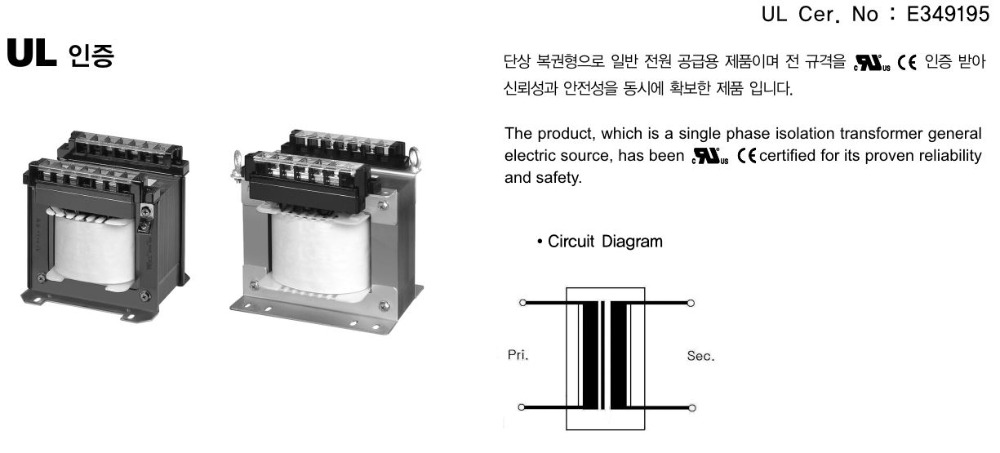

The product, which is a single phase isolation transformer is used for general electric source, has been UL, CE certified for its proven reliability and safety.
