WOONGJIN MACHINERY

WOONGJIN MACHINERY

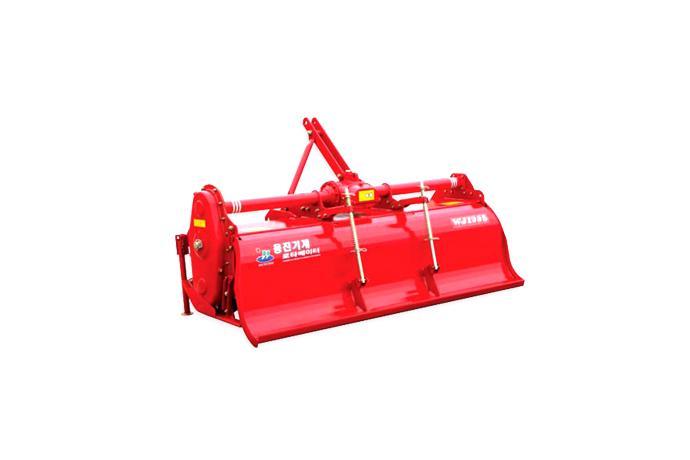

General Rotavator (A and B type)

Model

Series

-


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

Our farming machinery improves its outstanding capacity with

- Specially designed rotary blades provide larger plowing depth, reduce workload and demonstrate excellent harrowing.

- No rotary axis replacement is needed Change only the blade configuration to adapt to the soil properly of the relevant area.

- Top plate is designed in double structures to prevent distortion and preserve prototype even during lone term use.


- A protection cover prevents soil from splattering to the driver's seat the provides a convenient working environment.

- A hallow hiller is installed to offer soil preparation and other various tasks simultaneously.

- For the B type, the speed can be adjusted up to four by replacing a gear, according to work conditions.

Specifications

ModelSize(mm)Tilling Width
(mm)
Required Power
(hp)
Weight
(kg)
Flange QuantityBlade Quantity
LengthWidthHeight
WJ158A9001,7601,0201,58026~35360636
WJ165A9001,8701,0201,65035~45375636
WJ175A9001,9501,0201,75043~48395742
WJ185A9002,0201,1301,85048~55405742
WJ195B9002,0801,1401,95052~60475742
WJ205B9002,2201,1402,05055~70500848
WJ220B9002,3901,1402,20060~70530848
