WOONGJIN MACHINERY

WOONGJIN MACHINERY

Row Covering

Model

Series

-


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

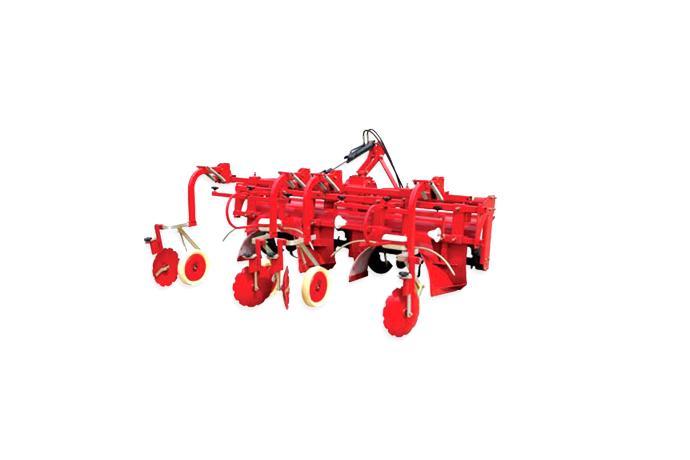

Simultaneous ridge formation and plastic blanketing.

- Efficient work process as rotary, ridge formation and blanketing is carried out simultaneously.

- Ridge width and plowing depth can be adjusted according to the wishes of the operator and type of crops.

- Specially employed blades enable excellent ridge formation, and the attached special resin plate prevents soil from adhering.

- Allows custom- made ridge forming for all types of crops, such as fruits and vegetables.

- A separate hydraulic cylinder is installed in a covered part, so that operators can complete work quickly without additional help, such as lifting up covered areas, etc.


Specifications

Model

section

Required Power
(hp)

Ridge
(mm)

Size(mm)

Weight
(kg)

Length

Width

Height

WJCM-1000

둥근1두둑

25~50

500~700

1,800

1,200

1,500

209

WJCM-2000

둥근2두둑

40~65

500~700

1,800

2,100

1,500

368
