product Image

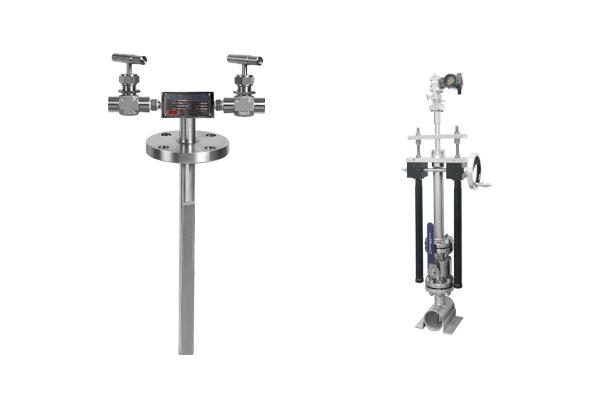

Averaging Pitot Tube
Model Name
F760
Series
Differential•Restrictio Type
Data
Manual-WISE-Differential•Restrictio Type-Averaging Pitot Tube-F760
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Brand
-
SKU
141837
Product Name
Averaging Pitot Tube
Model Name
F760
Size
-
Weight
-
Product Details

Description

Averaging pitot tube is an energy saving device used to measuring the flow of liquids, gases and steam in pipes, stacks and rectangular ducts. It provides high, long term stability with low permanent pressure loss. Examples of their applications are precise volumetic flow measurement in batch processes, continuous measurement of liquid ingredients in the process industry, fuel, air, steam and gases as primary energy source as well as in control functions requiring a high degree of stability and repeatability.

Advantages ■ Dual averaging for better accuracy
■ Short upstream and downstream straight pipe lengths
■ Long term accuracy unaffected by wear



Specification

Measuring fluid Liquid, Gas, Steam and etc.
Material 304SS, 316SS, 316L SS and Monel
Special materials are available
Pipe size 50 ~ 1,000 mm
2" ~ 40"
Max. working pressure 15 MPa
Max. working temperature 600 ℃
Accuracy ±1 % of actual flow rate
Rangeability 5:1
