product Image

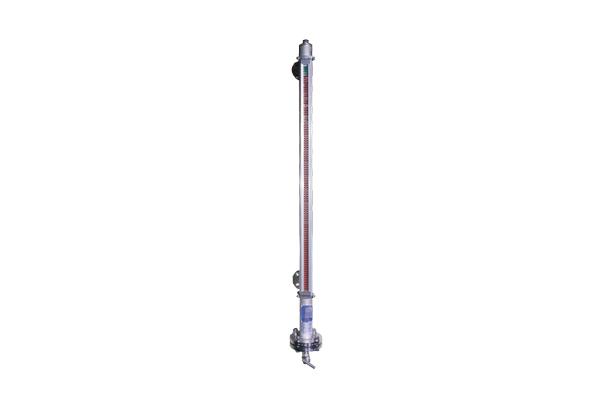

Magnetic Float Type Level Gauge
Model Name
L300 series
Series
Level Gauge•Switch
Data
Manual-WISE-Level Gauge•Switch-Magnetic Float Type Level Gauge-L300 series
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Product Type
Machine
Brand
-
SKU
141823
Product Name
Magnetic Float Type Level Gauge
Model Name
L300 series
Size
-
Weight
-
Product Details



Standard Specification

L300 (Chamber size-50A)

Chamber size 2" (50A)
Flange rating 150 ~ 900Lb
Material 304SS, 316SS, 316L SS, PVC, etc.
Indicator method Magnetic
Max. pressure 8 MPa
Max. temperature 350 °C
Specific gravity Min. 0.7
Viscosity Max. 50 CP



Standard Specification

L300 (Chamber size-65A)

Chamber size 2½" (65A)
Flange rating 150 ~ 900Lb
Material 304SS, 316SS, 316L SS, etc.
Indicator method Magnetic
Max. pressure 8 MPa
Max. temperature 350 °C
Specific gravity Min. 0.5
Viscosity Max. 50 CP

© WISE Control Inc. All rights reserved. ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
