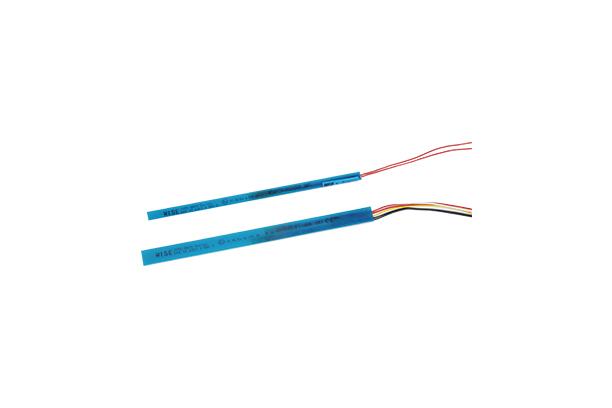

General Type Stator Winding RTD
Model Name
R831
Series
TG Sensor•Heater•Transmitter
Data
Catalog-WISE-TG Sensor•Heater•Transmitter-General Type Stator Winding RTD-R830 series
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Product Type
Machine
Brand
-
SKU
141792
Product Name
General Type Stator Winding RTD
Model Name
R831, R832, R833, R834, R835, R836, R837, R838
Size
-
Weight
-
Product Details

Service intended

The purpose of the stator winding RTD is to mainly detect and prevent overheating of motors. It is inserted between a stator and a slot to measure a temperature. Stator winding RTD uses the phenomenon of changing electric resistance to measure a temperature. Since it has high stability and sensitivity, it is used to measure a temperature precisely. Furthermore, it is made of a nonmetallic material, and, therefore, it has a structure of protecting element. It is designed well enough to get flexibility and to endure vibration and high pressure.



Standard features

Body material High temperature epoxy glass
Temperature limit Class F : 155 ℃ (311 ℉)
Class H : 180 ℃ (356 ℉)
Lead wires 3 wire or 4 wire, copper, AWG #22 (With FEP or polyimide insulation)
Ambient temperature Tamb = -50 ~ 180 ℃
Working temperature -50 ~ 180 ℃
