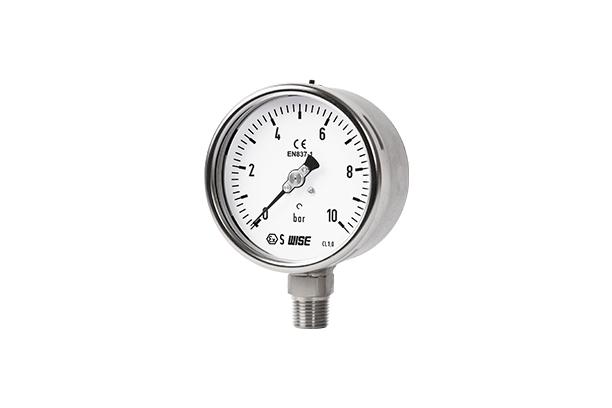

Euro gauge Safety pattern type pressure gauge (Bourdon Tube)
Model Name
P257 series
Series
General Pressure Gauge•Switch•Recorder
Data
Manual-WISE-General Pressure Gauge•Switch•Recorder-Euro gauge Safety pattern type pressure gauge (Bourdon Tube)-P257 series
Manufacturer information
provider logo
WISE CONTROL

Manufacturer of Mamometer temperature sensor, Flowmeter, Level gauge, Transmeter

Problem with product info?
Update request
Manufacturer
WISE CONTROL
Product Type
Machine
Brand
-
SKU
141680
Product Name
Euro gauge Safety pattern type pressure gauge (Bourdon Tube)
Model Name
P257 series
Size
-
Weight
-
Product Details

Service intended

P257 series are made with a solid plate wall and a blow-out back. Its stainless steel case and cover have a good appearance. It has the excellent proof against corrosion and chemical attack.

Nominal diameter 63, 100 and 160 mm
Accuracy P2572 (63 mm) : ±1.6 % of full scale
P2574 (100 mm) and P2576 (160 mm) : ±0.5 % of full scale
±1.0 % of full scale
Scale range (MPa, kPa, bar) 63 mm : -0.1 ~ 0 to 0 ~ 100 MPa
100 and 160 mm : -0.1 ~ 0 to 0 ~ 200 MPa
Working pressure Steady : 75 % of full scale (63 mm)
             100 % of full scale (100 and 160 mm)
Over range protection : 130 % of full scale
Working temperature Ambient : -40 ~ 65 ℃
               -20 ~ 65 ℃ (With glycerin filling)
               -40 ~ 65 ℃ (With silicone filling)
Fluid : Max. 200 ℃
          Max. 100 °C (With glycerin filling)
          Max. 100 ℃ (With silicone filling)
Degree of protection EN60529/IEC529/IP67
Temperature effect Accuracy at temperature above and below the reference temperature (20 ℃) will be effected by approximately
±0.4 % per 10 ℃ of full scale



Standard features

Pressure connection Stainless steel (316SS)
Element Stainless steel (316SS)
63 mm : <6 MPa : C type bourdon tube
             ≥6 MPa : Helical type bourdon tube
100 and 160 mm : <10 MPa : C type bourdon tube
≥10 MPa : Helical type bourdon tube
Case Stainless steel (304SS)
Cover Stainless steel (304SS) Bayonet type
Blowout protection Solid front Blow-out back
Window Laminated safety glass
Movement Stainless steel
Dial White aluminium with black graduations
Pointer Black painted aluminium alloy
Process connection 63 mm : ⅛", ¼" PT, NPT and PF
100 and 160 mm : ¼", ½", ⅜" PT, NPT and PF
Certificates ATEX Ex II GD c IIc TX
Pressure equipment directive (2014/68/EU)-Annex III Module H
Option Zero adjustable pointer
(Only available with diameter 100 and 160 mm)
Zero adjustment (External) : 100 and 160 mm
Pressure connection and element : Monel
(Only available with diameter 100 and 160 mm)
