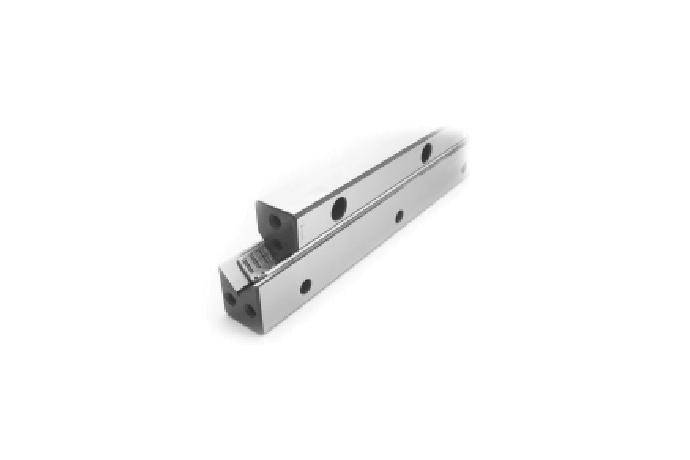

N/O Cross Roller Guide
Model Name
N/O-Type
Series
Cross Roller Guide
Data
-
Manufacturer information
provider logo
TOPTEK

Stage & Cross roller guide manufacturer, Ring guide, Precision stage and more

Problem with product info?
Update request
Manufacturer
TOPTEK
Brand
-
SKU
31655
Product Name
N/O Cross Roller Guide
Model Name
N/O-Type
Size
-
Weight
-
Product Details

탑텍 N/O크로스롤러가이드 N/O-Type



Application

N/O 타입 크로스롤러가이드는 고하중을 지지하고 매우 정밀한 모멘트를 구현하는데 적합합니다.



구조와 특성


일반적인 장착에는 2쌍의 리니어 베어링이 사용됩니다. :

각각의 쌍은 두개의 가이드 웨이(N-타입 수; O-타입 암)로 구성되며, 통열처리 되고

정밀 연마되며 중간에 하나의 니들 놀러 케이지가 장착됩니다. 높은 탈로런스를 가진

가이드 웨이로 한 세트를 이룹니다. 다른 세트와 혼용할 경우 정밀도에 영향을 미칠 수

있습니다.


가이드 웨이는 표준 사양에 따라 장착홀이 나 있습니다.

끝부분에 난 홀은 엔드스토퍼나 와이퍼를 장착하기 위한 것입니다. 장착을 위해서 특별한

나사인 GD를 별도로 주문하셔도 됩니다.


주문 요점.


보통 한 세트의 직선 베어링은 4개의 가이드와 (2쌍) 2개의 케이지, 8개의 엔드스토퍼로
되어 있습니다. (4개의 N타입 + 4개의 O타입)


주문시 다음 사항을 밝혀 주시기 바랍니다.

1. 가이드의 타입과 수량

2. 케이지의 타입과 수량 그리고 최대 스트로크

3. 엔드스토퍼의 타입과 수량 또는 와이퍼의 유무

GHA 와이퍼와 함께 GH 엔드스토퍼를 주문하거나

GW-A와이퍼와 함께 GW 엔드 스토퍼를 주문할 경우

4개만 필요합니다.
