Solvent type prepreg making systems saturate reinforcements with resin dissolved in a solvent which decreases its viscosity and aids fibers’ complete wet-out.

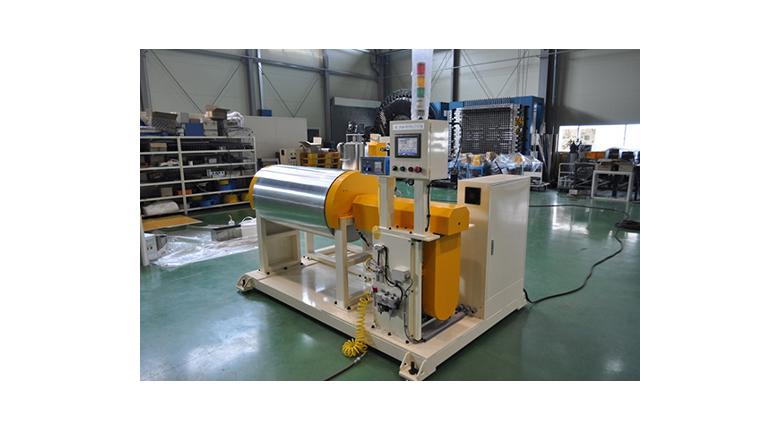

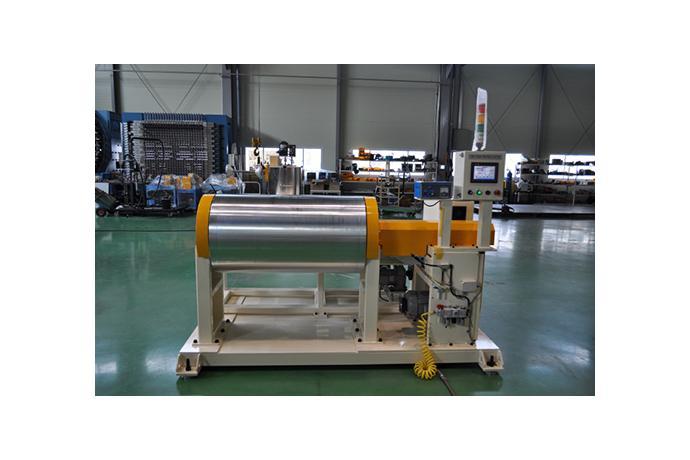

Single roving is guided through guide bars to achieve appropriate tension, run through a resin bath, lead through a set of rollers to remove excess resin and winded around the drum just like filament winding. it control automatically the fiber areal weight[FAW].

This machine can easily make a sample prepreg and specimen to test mechanical properties when we modified resin component and carbon fiber producing method.

It is excellent solution for the laboratories and research institutes that are developing and testing new preperg material. custom sizes to suit your applications.

Specification

Prepreg size : 1000mm(W) x 1900mm(L)

FAW control : 75~400 ± 5g/㎡

Winding drum size : Dia. ∅605 x L 1105mm (option. thermal oil heating system)

Resin cycle system : One set pneumatic double diaphragm pumps, peunmatic motor agitator and over/Square Tank & Ceramic Guide Bar Type

Resin bath size : 1000mm(W) x 120mm(D) x 145mm(H)

Resin bath driving stroke : Horizontal stroke 1000mm

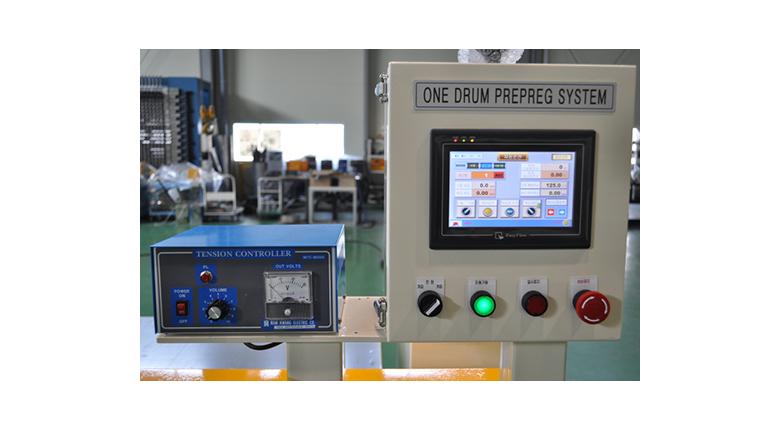

Roving tension control : Electric powder brake type

Machine size(Single Drum) : 2370mm(W) x 1995mm(D) x 2110mm(H)
