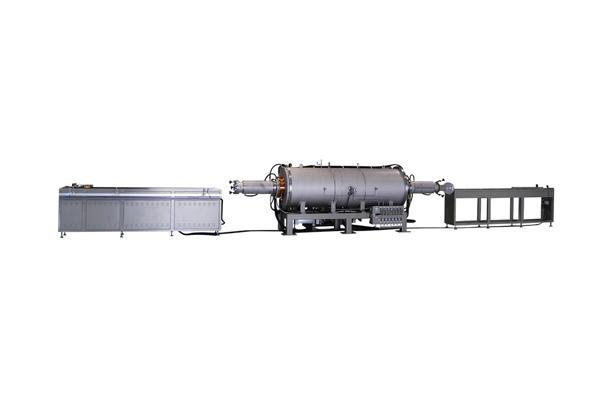

Pusher-style Round Type Continuous Furnace
Model Name
TNOST-7500
Series
Continuous Furnace
Data
-
Manufacturer information
provider logo
THERMONIK

Furnace Manufacturer, Graphite Furnace, Metal Furnace, GPS & Hot Press and more

Problem with product info?
Update request
Manufacturer
THERMONIK
Product Type
Machine
Brand
-
SKU
142086
Product Name
Pusher-style Round Type Continuous Furnace
Model Name
TNOST-7500
Size
-
Weight
-
Product Details
Heat zone 260 Dia. x 7500L ※Can be changed according to consumer needs
Max temp 2900℃ ※Can be changed from 1000 ~ 2900℃ according to consumer needs
Furnace body dimensions 9900L x 1100W x 1100H
Furnace installation area 23000L x 7000W x 3000H
Heater Graphite Round Type Heater
Insulating material Graphite molded insulating material
Rail Gaphite
Used Gas N2(Up to 2400℃), Ar
Utlity Power 500KVA, cooling water, process gas, air
Purpose
  • 1) Graphitizing and Carbonization of Graphite Sheet
  • 2) SiC product sintering
  • 3) C/C composite sintering
  • 4) Heat treatment of various products such as graphite powder, etc.
Zone control method Optical Pyrometer Control
THERMONIK
Furnace Manufacturer, Graphite Furnace, Metal Furnace, GPS & Hot Press and more
We have been manufacturing electric furnaces since February 2001 through technical cooperation with Japan Thermonic Co. Ltd. Continuous Furnace, Tiltable Continuous Furnace, Multi-stage Furnace, Firing furnace using a heating roller, Single crystal growth furnace We have the above patents and continuously develop and manufacture furnaces that meet the needs of various customers and not only supply the products to the domestic but also export to the US, Japan, Taiwan, China, Vietnam, Germany, France, and China. Also, the Hwa-Seong plant has equipment for experimentation so that customers can install appropriate equipment after the experiment that we help. In return for the support of customers, we will do our best to become a company that develops together with consumers by supplying better equipment at low prices. We would like to ask for your support and encouragement.
