Ultra Slim, but Strong

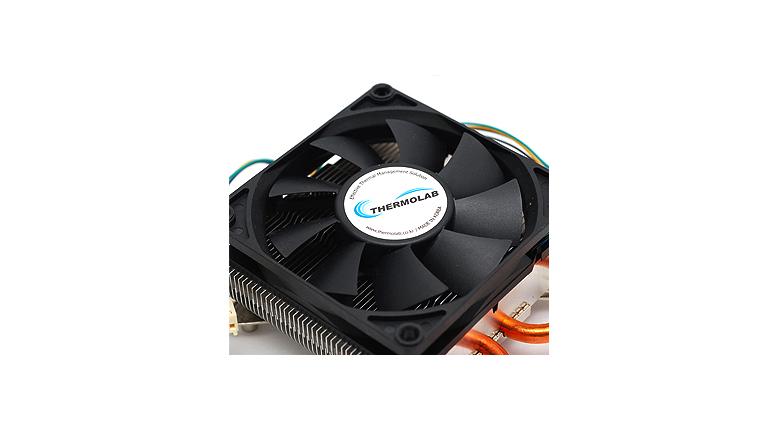

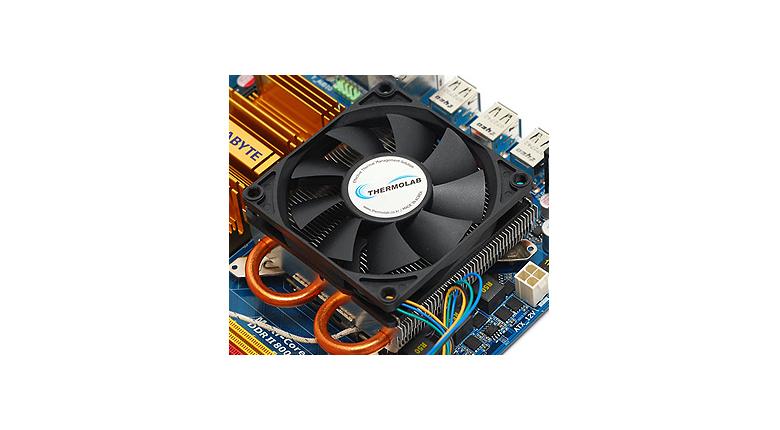

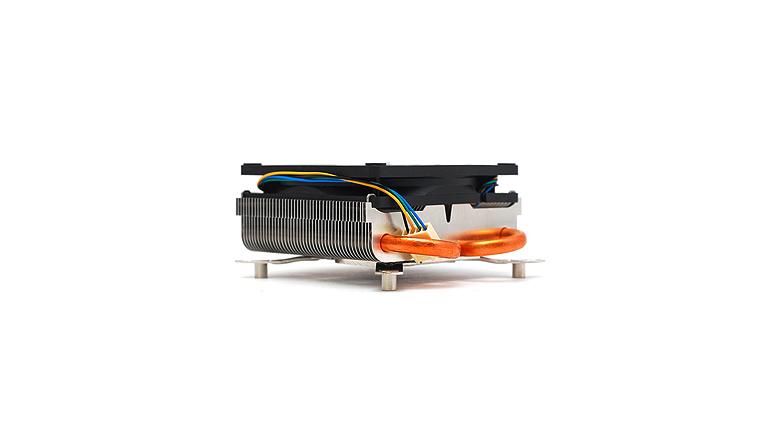

Nano Silencer 2009
PCT (Power Clamping Technology) a.Minimization
b.Low noise
c.Thermal stability
Design compatibility a.Mini-ITX, Micro ATX form factor
b.Low Profile (LP) case
c.ompatible with Pannel Pc, Tunning Pc, Car PC

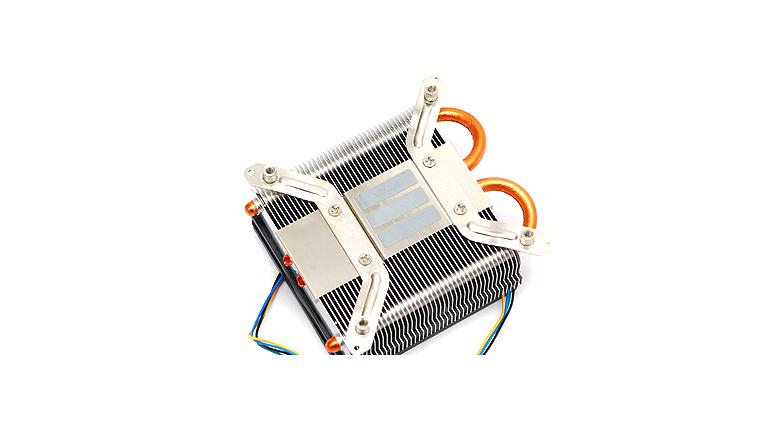

Stable structure a.Stable mounting method
b.Light weight
Nano Silencer 2009 is for Intel Socket 775 CPUs, AMD Socket AM3/AM2+/AM2 CPUs
Applicable CPU
◦Socket Standards : Intel Socket 775 CPUs, AMD Socket FM1/AM3/AM2+/AM2 CPUs
◦Thermal Design Power of CPU : below 100Watt
◦Motherboard Standards : Mini ITX, Micro ATX, ATX
Components
Specification
Cooler
| Product Name | Nano Silencer 2009 |
|---|---|
| Dimension | 99.5 x 88.2 x 39 (L x W x H)mmm |
| Weight | 214g (Heat sink and Fan) |
| Heatsink Material | Pure copper (Heat Pipe), Aluminum(Base Block, Fins) |
| Dissipation Area | 1,250 cm² |
FAN
| Dimension | 80 x 80 x 15mm |
|---|---|
| Speed | Less than 3,000rpm ± 10% |
| Noise Level (1) | 30.5dB(A) at 3,000rpm |
| Bearing Type | Rifle Bearing |
| Control Method | PWM, Auto Restart, Locked Current protection |
| Fan Life Expectancy | 70,000hr continuous at 40℃, 15~65% relative humidity |
TIM (Thermal Interface Material)
| Thermal Conductivity | 8 W/mK (ASTM D 5470) |
|---|---|
| Viscosity | 190 Pa·s |
| Density | 2.6 g/cm³ |
| Color | Gray |
Note(1) : Measured at a point of 1m away from noise sources.
Warranty
Warranty period is one year from the date of purchase and covers any defects of the product in materials or workmanship free of charge. But, any damages or malfunction caused by customer faults shall be charged.
