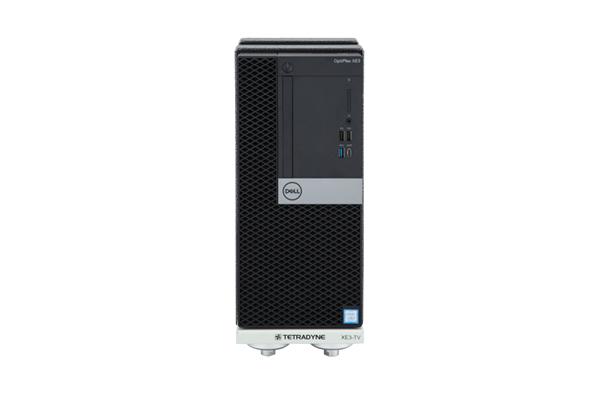

Product Name Dell Optiplex XE3 MT With Anti-Vibration
Model TVK-XE3-TH/TV
Series Marine · Offshore
Catalog catalog-tetradyne-TVK-XE3-TH/TV.pdf
Product Description

GENERAL

Optiplex XE3 (Small Form Factor type, SFF and Mini Tower type, MT) PCs are type approved for marine usage by ABS, BV, DNVGL, KR, LR, NK, CCS when they are used in conjunction with TD Kits. They are also IACS E10&IC60945 approved for a wheel-house/bridge installation.


Optiplex XE3 PCs are made by Dell and TD Kits by Tetradyne. TD Kits are designed for protection against vibration and shock caused by marine environments surrounding in vessels and offshore constructure.  The kits allow users to install the PCs in safe & reliable fixation where they want to install.


There are 3 types of TD kits.  For XE3 MT, there are TVK-XE3-TH (horizontal installation) and TVK-XE3-TV (vertical installation).  For XE3 SFF, there is TVK-XE3-SH (horizontal installation)


The combination (XE3 + TD Kits) can be efficiently used in various marine applications such as controlling, monitoring, loading, detecting, networking, etc.



KEY FEATURES

- 8th Generation Intel Core i3 / i5 / i7

- DDR4 4GB 2666MHz (up to 32GB)

- SATA III HDD / SSD (up to 2TB)

- Type Approved by ABS, BV, CCS, KR, LR, NK

- IACS UR E10 & IEC60945 approved for a wheel house / bridge installation

- Windows 10 PRO (64-bit)


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
CPUIntel 8th Generation Core i3/i5/i7
OSWindows 10 PRO (64-bit)
MemoryDDR4 4GB 2666MHz (up to 32GB)
ChipsetIntel Q370 Chipset
StorageSATA HDD/SSD up to 2TB
GraphicIntel UHD630
Networking (LAN)Intel 1219LM Etherent
Input Types10 x USB : 1 x 3.1 Type-C
                   5 x 3.1 Type-A (1 front, 4 rear)
                   4 x 2.0 Type-A (2 front, 2 rear)
1 x RJ 45
2 x DisplayPort
1 x Serial
2 x PS/2
1 x Audio Jack
1 x Line-out
Optional: 1 x Video Port (VGA/DP/HDMI 2.0b/USB Type-C alt-mode, USB Add-in-card, Serial Add-in-card
Number of Bays (max)1 internal 3.5'' HDD
2 internal 2.5'' HDD
1 internal slim ODD
Expension Slots1 Full Height PCIe x 16
1 Full Height PCIe x 16 (wired x 4)
1 Full Height PCle and PCle x 1
1M.2 for storage (22x80mm / 22x30mm)
Power Consumption360W (80 PLUS Gold)
Dimension (PC with kit)350 (H) x 154 (W) x 274 (D) mm
Weight (PC with kit)7.93kg
Temperature RangeOperating : 0℃ to 70℃
Non-Operating : -20℃ to 60℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
Optical Drive Device8xDVD-ROM 9.5mm ODD (Option)
8xDVD+/-RW 9.5mm ODD (Option)
CertificationABS, BV, CCS, DNVGL, KR, LR, NK, IEC60945
Warranty24 months


DRAWING
TVK-XE3-TH (TD Kit for XE3 Mini Tower, Horizontal Installation)



TVK-XE3-TV (TD Kit for XE3 Mini Tower, Vertical Installation)
