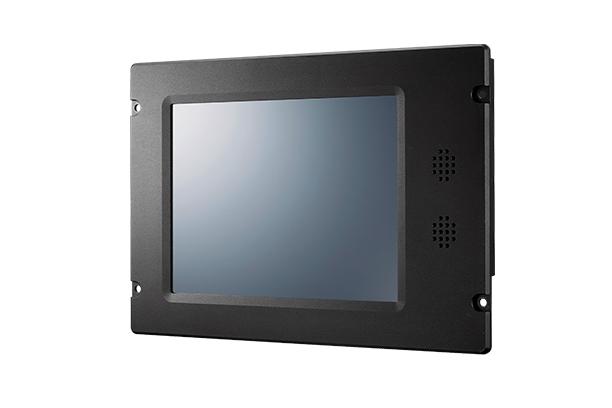

7 Inch Embedded Touch Panel

Model

Series

Marine · Offshore


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

GENERAL

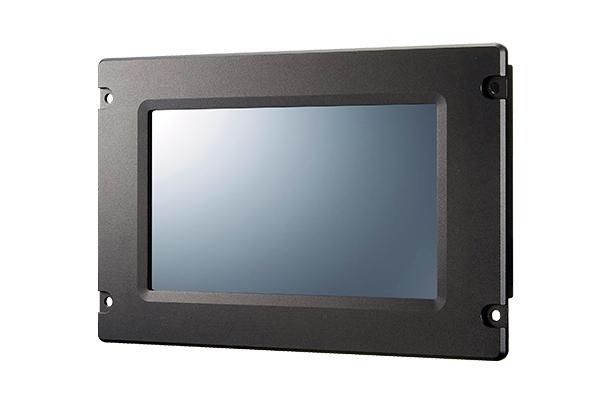

TIP-070WT is Embedded Touch Panel product with the open-platform flexibility of the Windows® CE operating system.

The unit can be used for applications with a need to monitor, control and display information such as EAP (Extension Alarm Panel) and any other monitoring required applications.

With Flush/Console mounting type the unit can be mounted on a bridge, an engineer-on-duty’s cabin and all the popular industrial panels or specialized panels designed for rugged and marine environments.

The unit is equipped with 7″ LCD touch display and designed for easy operation and supports various communication standards such as RS485, LAN and CAN.





KEY FEATURES

- Resistive Touch screen

- RS485, LAN, CAN Communication

- Power : 24VDC input (18~36VDC)





SPECIFICATION

GENERAL FEATURE
Section Specifications
Display type LED Backlight , Wide TFT LCD
Viewable Size 7 inch diagonal
Resoultion 800 x 480
Brightness 400 cd/㎡
Contrast Ratio 500:1
Response Time 35 ms
Active Area 154.08 (H) x 85.92 (V) mm
Viewable Angle 140° RL / 120° UD
Touch type 4-Wire Resistive
System CPU S5PV210 (ARM Cortex A8) - 1GHz
Memory SDRAM 512MB
Storage NAND FLASH 512MB
Connector Types 2 x CAN 2.0
4 x RS-485
1 x RJ45 (10/100Mbps Ethernet)
2 x USB 2.0 Port
1 x Mini USB Port (Internal use only)
1 x Micro SD Card Slot
Power Specification DC 24V (DC 18~36V)
Power Consumption 12W (MAX)
Dimension 216 (W) x 138 (H) x 45 (D) mm (No Buzzer)
241 (W) x 140 (H) x 45 (D) mm (Built-in Buzzer)
Weight 1.10kg (No Buzzer)
1.26kg (Built-in Buzzer)
Temperature Range Operating : 0° to 60℃
Non-Operating : -20° to 80℃
Humidity Range Operating : up to 95%
Non-Operating : up to 95%
Supported OS Windows CE 6.0
Option Buzzer 1 : Min. 85dB Buzzer (350~500Hz) built-in Internal Control
Buzzer 2 : Min. 95dB Buzzer (3,200±500Hz) built-in External Control
Certification DNV
Warranty 24 months





DRAWING





Download

catalog-tetradyne-TIP-070WT
