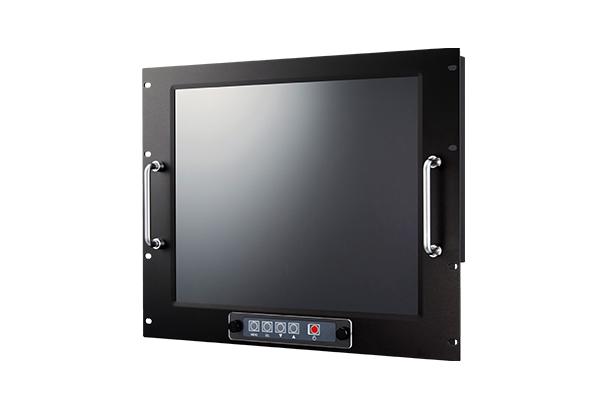

Product Name 24 Inch Marine Monitor
Model TIMX-W240
Series Marine · Offshore
Catalog catalog-tetradyne-TIMX-W240.pdf
Product Description

GENERAL

This specification defines the descriptions for the TIMX-W240 TFT LCD Monitor. TIMX series is developed and designed for use in operator display such as Industrial and Marine applications.


TIMX-W240 is type-approved by DNVGL.


KEY FEATURES

- Capacitive touch OSD Control

- HDMI, DVI, RGB, BNC (Option) input

- Picture in Picture (PIP)

- Projected Capacitive Touch Screen – Option

- Anti-glare – Option

- Internal Buzzer Control – Option

- Flush Mounting


SPECIFICATION

GENERAL FEATURE
SectionSpecifications
Display typeLED Backlight, Wide TFT LCD
Viewable Size24 inch diagonal
Resolution1920 x 1200 @60Hz
Aspect Ratio16:10
Brightness300cd/㎡
Contrast Ratio1000:1
Response Time14ms
Active Area518.4 (H) x 324.0 (V) mm
Pixel Pitch0.270 (H) x 0.270 (V) mm
Viewable Angle178 ° RL / 178° UD
Support Color16.7M colors
Synchronization Range31~80KHz (Horizontal)
55~76Hz (Vertical)
Detectable Resolution640 x 480, 800 x 600,
1024 x 768, 1280 x 1024,
1920 x 1200
Connector Types1 x HDMI (Standard)
1 x DVI (DVI 24p female)
1 x RGB (D-SUB 15p female)
2 x Composite (CVBS)
1 x RS232 (D-SUB 9p female)
1 x RS-422/485 (Euro Terminal Block)
Power Specification100~230VAC 50/60Hz (IEC Standard Type)
DC24V (Terminal Block)
Power Consumption40W (MAX)
Dimension600 (W) x 70 (D) x 420 (H) mm
Weight11.5kg
Temperature RangeOperating : -15℃ to +55℃
Non-Operating : -20℃ to +60℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
OptionProjected Capacitive Touch Screen
Anti Glare Glass, Optical Bonding
Sunlight Readable/High Brightness
RS-232/422/485
Composite Video
Buzzer
IP-RatingIP65 Front
Test ApprovalIEC 60945 4th, IACS E-10, IEC 60529
CertificationDNV GL
Warranty24 months


DRAWING
