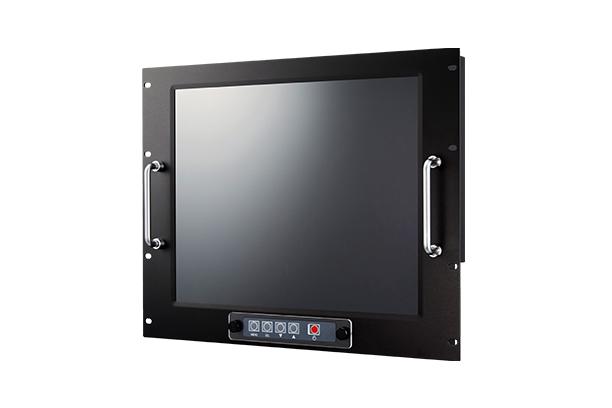

Product Name 17 Inch Marine Monitor
Model TIM-170NH
Series Marine · Offshore
Catalog catalog-tetradyne-TIM-170NH.pdf
Product Description

GENERAL

This specification defines the descriptions for the TIM-170NH TFT LCD Monitor.

TIM series is developed and designed for use in operator display such as Industrial and

Marine applications.


TIM-170NH is type-approved by BV, LR, NK.

KEY FEATURES

- Mambrane OSD control

- DVI-D, RGB Input Signal

- Console, Stand (Desktop) Mounting Type

- Aluminum chassis (Front)

SPECIFICATION

GENERAL FEATURE
SectionSpecifications
Display typeLED Backlight, Wide TFT LCD
Viewable Size17 inch diagonal
Resolution1280 x 1024 @60Hz
Aspect Ratio5:4
Brightness350cd/㎡
Contrast Ratio800:1
Response Time30ms
Active Area337.920 (H) x 270.336 (V) mm
Pixel Pitch0.264 (H) x 0.264 (V) mm
Viewable Angle160°RL / 140°UD
Support Color16.7M colors
Synchronization Range31~80 Hz (Horizontal)
55~76 Hz (Vertical)
Detectable Resolution640 x 350, 640 x 480,
720 x 400, 800 x 600,
1024 x 768, 1280 x 1024
Connector Types1 x VGA (D-SUB 15p female)
1 x DVI-D (DVI 24p female)
Power Specification110VAC~230VAC 50/60Hz (IEC Standard AC Inlet)
Power Consumption40W (MAX)
Dimension444 (W) x 71.5 (D) x 353 (H) mm
Weight7.56kg
Temperature RangeOperating : 0℃ to +50℃
Non-Operating : -20℃ to +60℃
Humidity RangeOperating : up to 95%
Non-Operating : up to 95%
OptionDimming : 3~100%
Test ApprovalIEC 60945, IACS E-10
CertificationBV, LR, NK
Warranty24 months

DRAWING
