TETRADYNE

TETRADYNE

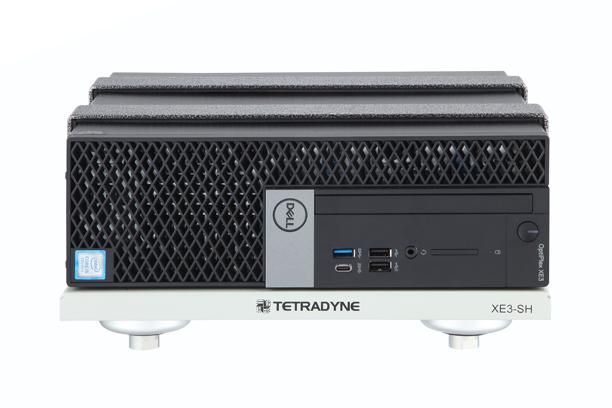

Optiplex XE3 SFF With Anti-Vibration Kit

Model

Series

TD KIT (Anti-Vibration)


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

GENERAL

Optiplex XE3 boasts high performance with 8th Gen CPU, long-term stability from durable materials and extensive scalability from Tool-less design. There are 2 types, Small Form Factor (SFF) type or Mini Tower (MT).  Users can select the types upon their needs for configuration. SFF type is for users in needs of small-space-installation.  MT type offers users more choices on expansion slots and bays.




KEY FEATURES

- 8th Generation Intel Core i3 / i5 / i7

- DDR4 4GB 2666MHz (up to 32GB)

- SATA III HDD / SSD (up to 2TB)

- Type Approved by ABS, BV, CCS, KR, LR, NK

- IACS UR E10 & IEC60945 approved for a wheel house / bridge installation

- Windows 10 PRO (64-bit)





SPECIFICATION

GENERAL FEATURE
Section Specifications
CPU Intel 8th Generation Core i3/i5/i7
OS Windows 10 PRO (64-bit)
Memory DDR4 4GB 2666MHz (up to 32GB)
Chipset Intel Q370 Chipset
Storage SATA HDD/SSD (5400rpm / 7200rpm) up to 2TB
I/O 10 x USB : 1 x 3.1 Type-C
                   5 x 3.1 Type-A (1 front, 4 rear)
                   4 x 2.0 Type-A (2 front, 2 rear)
1 x RJ 45
2 x DisplayPort
1 x Serial
2 x PS/2
1 x Audio Jack
1 x Line-out
Optional: 1 x Video Port (VGA/DP/HDMI 2.0b/USB Type-C alt-mode, USB Add-in-card, Serial Add-in-card
Graphic Intel UHD630
Networking (LAN) Intel 1219LM Etherent
Power Consumption 300W (PLUS Gold)
Dimension (PC with kit) 290mm (H) x 92.6mm (W) x 292mm (D)
Weight (PC with kit) 5.26kg
Environmental factors Operation Temp : 0℃ to 70℃
Storage Temp : -20℃ to 60℃
Humidity : 0% to 95%
Certification ABS, BV, CCS, DNVGL, KR, LR, NK, IEC 60945
Optical Drive Device 8xDVD-ROM 9.5mm ODD (Option)
8xDVD+/-RW 9.5mm ODD (Option)
SD Media Card Reader
Number of Bays (max) 1x3.5'' or 2x2.5'' HDD
1 internal slime ODD
Expension Slots 1 Half Height PCIe x 16
1 Half Height PCIe x 16 (wired x 4)
1M.2 for wireless (22x30mm)
1M.2 for storage (22x80mm / 22x30mm)
Warranty 24 months





DRAWING
