Description

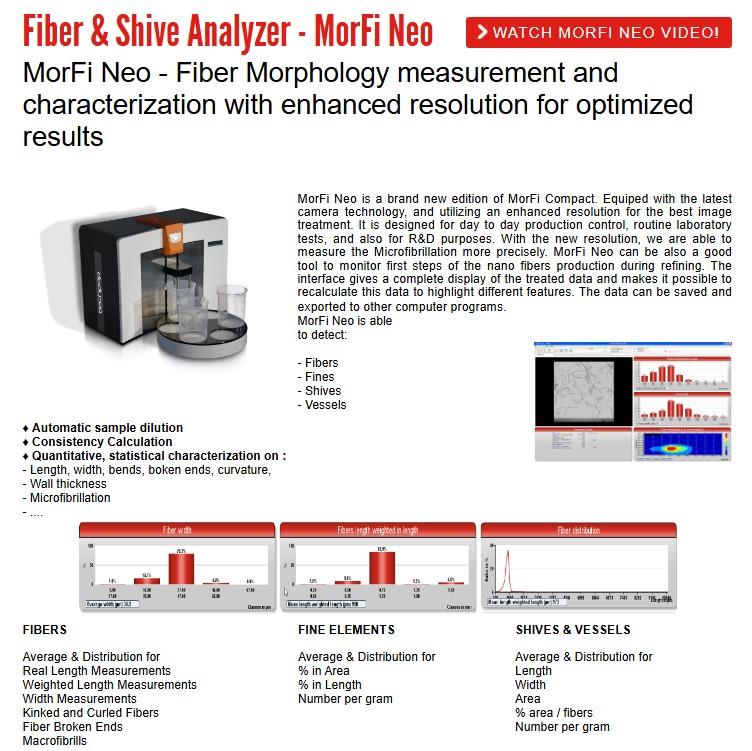

MorFi Neo - Fiber Morphology measurement and characterization with enhanced resolution for optimized results
 |
MorFi Neo is a brand new edition of MorFi Compact. Equiped with the latest camera technology, and utilizing an enhanced resolution for the best image treatment. It is designed for day to day production control, routine laboratory tests, and also for R&D purposes. With the new resolution, we are able to measure the Microfibrillation more precisely. MorFi Neo can be also a good tool to monitor first steps of the nano fibers production during refining. The interface gives a complete display of the treated data and makes it possible to recalculate this data to highlight different features. The data can be saved and exported to other computer programs. - Fibers |
|
Automatic sample dilution Consistency Calculation Quantitative, statistical characterization on : - Length, width, bends, boken ends, curvature, |
|
 |
|
FIBERS Average & Distribution for Real Length Measurements Weighted Length Measurements Width Measurements Kinked and Curled Fibers Fiber Broken Ends Macrofibrills |
FINE ELEMENTS Average & Distribution for % in Area % in Length Number per gram |
SHIVES & VESSELS Average & Distribution for Length Width Area % area / fibers Number per gram |

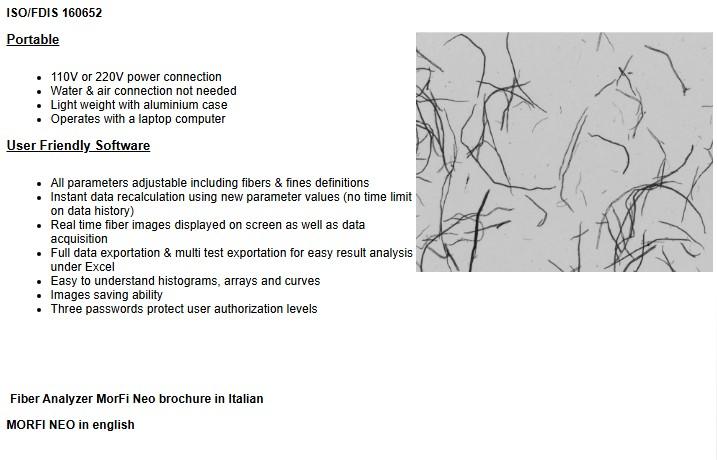

ISO/FDIS 160652
|
Portable
User Friendly Software
|
 |
