Product Name Bulkhead Connector
Model
Series Bulkhead Connector
Catalog
Product Description

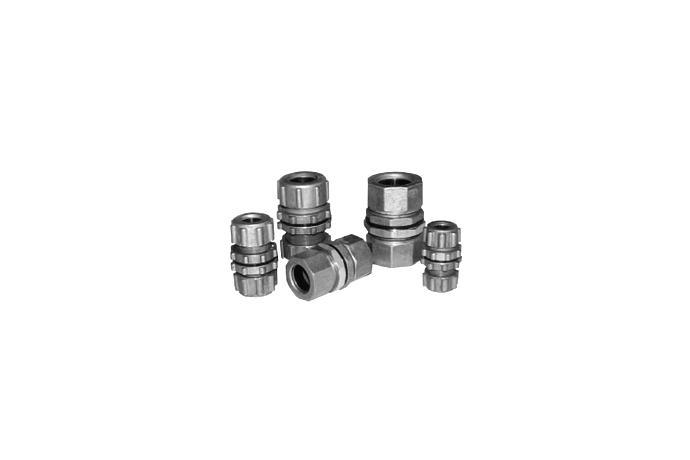

Taeha offers five models of connectors(3/4”, 1”, 1&1/4”,

1&1/2, 2”)

Construction...It is pressure die-casted aluminum and is supplied complete with nuts, seals, and seal support cups.

Normally it is supplied with BUNA-N seals for te-mperatures up to 200℉(93℃), but special viton seals, if specified, can be supplied for temperatures up to 388℉(198℃).

Each connector is supplied with a gasket to seal the fitting against the collector wall and this eliminates any need for costly welding.





Description

A

B

C

D

E

F

G

H

I

J

BH-20

116

18

43

42

49

45

28

35

80.5

64

BH-25

142

29

53

48

57

54

35

44

94

78

BH-30

-

-

61

-

-

55

44

44.5

93

74

BH-40

150

19

70

60

80

63

50

53

113

97

BH-50

-

-

81

-

-

65

61.5

53

112.5

97
