TAEHA VALVE

TAEHA VALVE

Pulse Vavle

Model

Series

Pulse Valve


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

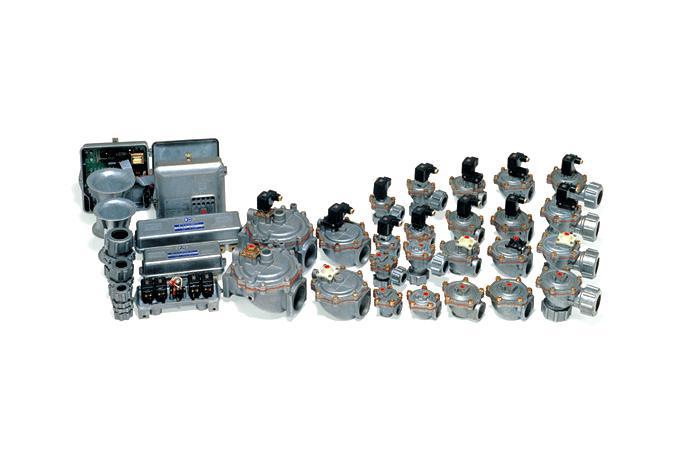

Aluminum die-casted valves are high flow diaphragm operated valves specially designe for air pulse

type dust collectors.



High flow, long life and its fast opening combine to offer a supperior design for the dust collector system

available for remote pilot valve operation with the solenoid enclosure or the integral solenoid pilot opera-

tion.



For the connection, We offer the screw, coupling and flange type valve. Viton diaphragms are offered for

the high temperature applications.

Model

Pipe Size

Connection

Cv Factor

Weight

TH-5820-B

3/4"

Screw

10.5

340g

TH-5820-C

3/4"

Coupling

10.5

555g

TH-4820-B

3/4"

Screw

10.5

695g

TH-4820-C

3/4"

Coupling

10.5

955g

TH-5825-B

1"

Screw

18.7

460g

TH-5825-C

1"

Coupling

18.7

865g

TH-4825-B

1"

Screw

18.7

855g

TH-4825-C

1"

Coupling

18.7

1290g

TH-5825-M

1"

Manifold

41

410g

TH-5830-B

1 1/4"

Screw

46.5

795g

TH-5430-B

1 1/4"

Screw

46.5

960g

TH-4830-B

1 1/4"

Screw

46.5

1140g

TH-4430-B

1 1/4"

Screw

46.5

1220g

TH-5430-M

1 1/4"

Manifold

58.05

720g

TH-4430-M

1 1/4"

Manifold

58.05

1090g

TH-5840-F

1 1/2"

Flange

39

920g

TH-4840-F

1 1/2"

Flange

39

1260g

TH-5840-B

1 1/2"

Screw

53.9

925g

TH-5840-C

1 1/2"

Coupling

53.9

1670g

TH-5440-B

1 1/2"

Screw

53.9

1040g

TH-5440-C

1 1/2"

Coupling

53.9

1770g

TH-4840-B

1 1/2"

Screw

53.9

1315g

TH-4840-C

1 1/2"

Coupling

53.9

2030g

TH-4440-B

1 1/2"

Screw

53.9

1395g

TH-4440-C

1 1/2"

Coupling

53.9

2110g

TH-5440-M

1 1/2"

Manifold

69.5

890g

TH-4440-M

1 1/2"

Manifold

69.5

1173g

TH-5850-F

2"

Flange

68.5

1705g

TH-5450-F

2"

Flange

68.5

1800g

TH-4850-F

2"

Flange

68.5

2065g

TH-4450-F

2"

Flange

68.5

2120g

TH-5450-B

2"

Screw

74.2

1895g

TH-4450-B

2"

Screw

74.2

2240g

TH-4450-M

2"

Manifold

82

1636g

TH-5450-M

2"

Manifold

823

1328g

TH-5460-B

2 1/2"

Screw

96

3315g

TH-5460-S

2 1/2"

Screw

110

4450g

TH-4460-B

2 1/2"

Screw

110

3475g

TH-4460-S

2 1/2"

Screw

110

4730g

TH-5475-B

3"

Screw

142

3505g

TH-4475-B

3"

Screw

142

3825g

TH-5475-M

3"

Manifold

170

3485g

TH-4475-M

3"

Manifold

170

3712g

TH-4490-M

3 1/2"

Manifold

218

4170g

TH-5490-M

3 1/2"

Manifold

218

3855g

TH-5400-M

4"

Manifold

245

5295g

TH-4400-M

4"

Manifold

245

5495g
