SUNGSUNG INDUSTRIAL MACHINERY

Crane Control Equipments

Model

Series

Crane Parts

Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.

Description

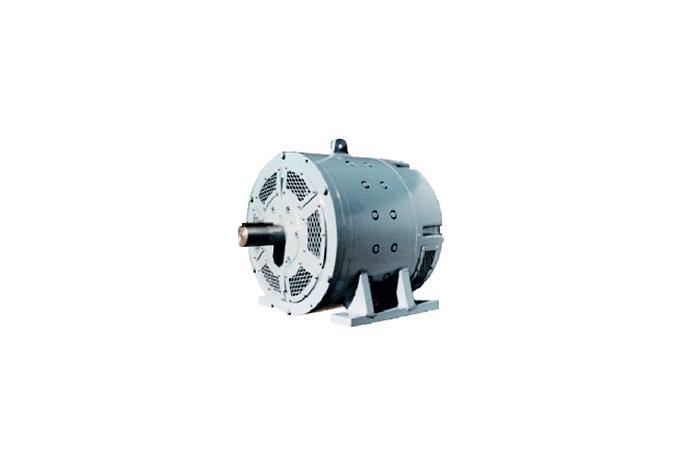

Sungsung Industrial Machinery Crane Control Equipments EC-Series

Sungsung Industrial Machinery Crane Control Equipments EC-Series 1

TYPE	A	B	C	D	E	F	G	H	I	J	K	L	M	N	O
EC-132	380	80	140	162	175	216	256	40	15	240	32	132	27	10	15
EC-160	455	110	200	185	250	254	304	50	18	310	42	160	37	12	15
EC-180	475	110	200	195	250	279	349	70	18	350	48	180	43	12	15
EC-200	505	110	220	200	290	318	398	80	18	390	55	200	49	16	19
EC-225	515	110	230	200	300	356	446	90	22	440	55	225	49	16	19
EC-250	585	140	240	245	320	406	496	90	28	490	60	250	53	18	24
EC-280	665	140	320	245	400	457	557	100	28	550	70	280	63	18	24
EC-315	765	170	400	270	500	508	630	130	33	620	85	315	76	25	26
EC-355	900	210	470	325	600	610	750	150	38	700	100	355	90	28	30
EC-400	996	210	520	341	650	686	866	180	38	790	110	400	100	28	35

TYPE	W.W.MOTOR					EC BRAKE
	OUTPUT (kw)			POLES	RPM	braking torque (kg.m)	MIN(rpm)	MAX.(rpm)	RATED%ED	EXCITING		GD2(kg.m2)	weight(kg)
	25%ED	40%ED	60%ED							VDC	ADC
EC-160	6.3	5.5	4.5	6	1,200	11	200	1,800	10	90	3.5	0.4	100
	8.5	7.5	6.3	6	1,200
	13	11	9	6	1,200
EC-180	17	15	13	6	1,200	15	200	1,800	10	110	3.5	1.0	133
EC-200	25	22	18.5	6	1,200	22	200	1,800	10	110	4.5	1.5	166
EC-225	33	30	25	6	1,200	30	200	1,800	10	110	6	2.0	200
EC-250	40	37	30	6	1,200	45	200	1,800	10	110	7	5	288
	50	45	37	6	1,200
EC-280	63	55	45	8	900	75	150	1,350	10	150	10	10	433
EC-315	85	75	63	8	90	120	150	1,350	10	150	10	19	633
	100	90	75	8	900
EC-355	125	110	90	10	720	220	120	1,080	10	190	15	50	1,035
	150	132	110	10	720
EC-400	185	160	132	10	720	330	120	1,080	10	210	21	61	1,380

Sungsung Industrial Machinery Crane Control Equipments EC-Series 2

Sungsung Industrial Machinery Crane Control Equipments EC-Series 3

TYPE	A	B	C	D	E	F	G	H	I	J	K	L
AM-132	443	216	150	160	80	60	190	132	12	210	378	12
AM-160	486	254	170	200	100	60	210	160	12	210	427	15
AM-180	598	279	180	250	125	70	220	180	12	260	465	15
AM-200	598	318	190	250	125	80	240	200	12	260	530	19
AM-225	768	356	220	315	160	90	270	225	16	260	599	19
AM-250	876	406	240	355	180	100	300	250	16	310	662	24
AM-280	920	457	260	400	200	110	320	280	20	310	710	24
AM-315	996	508	300	450	224	120	370	315	22	310	830	28
AM-355	1180	610	340	500	250	190	400	355	25	370	940	28
AM-400	1558	686	360	560	280	190	400	400	25	375	926	35

TYPE	MOTOR		TORQUE(kg.m)	DUTY%ED	TIMES/HR	exciting voltage		stroke(mm)	WEIGHT		DRUM GD2 (kg.m2)
TYPE	KW	P	TORQUE(kg.m)	DUTY%ED	TIMES/HR	440	220	stroke(mm)	BRAKE	DRUM	DRUM GD2 (kg.m2)
AM-132	2.2/3.7	6	5/6.7	40	400	180/30	90/20	5	24	6	0.1
AM-160	5.5/7.5/11	6	10/14/21.2	40	400	180/30	90/20	5	42	10	0.3
AM-180	15	6	30	40	400	180/30	90/20	5	67	16	0.67
AM-200	22	6	40	40	400	180/30	90/20	5	71	16	0.67
AM-225	30	6	53	40	400	180/30	90/20	5	81	30	2
AM-250	37/45	6	63/80	40	400	180/30	90/20	5	120	45	3.5
AM-280	55	8	132	40	400	180/30	90/20	5	135	60	6
AM-315	75/90	8	180	40	400	180/30	90/20	5	200	72	9.5
AM-355	110/312	10	335	40	400	180/30	90/20	5	270	105	18
AM-400	160/200	10	400	40	400	180/30	90/20	5	380	150	32

Sungsung Industrial Machinery Crane Control Equipments EC-Series 4

Sungsung Industrial Machinery Crane Control Equipments EC-Series 5

TYPE	A	B	C	D	E	F	G	H	I	J	K	L
DM-225	815	356	220	315	160	90	270	225	16	265	584	19
DM-250	898	406	240	355	180	100	300	250	20	300	638	24
DM-280	970	457	260	400	200	110	320	280	20	323	685	24
DM-315	1095	508	300	450	224	90	360	315	19	345	750	28
DM-355	1257	610	340	500	250	190	400	355	25	415	858	28

TYPE	MOTOR		TORQUE(kg.m)	DUTY%ED	TIMES/ HR	EXCITING VOLTAGE(VDC)		WEIGHT(Kg)
TYPE	KW	P	TORQUE(kg.m)	DUTY%ED	TIMES/ HR	440VAC	220VAC	BRAKE	DRUM
DM-225	30	6	53	40	400	180/30	90/20	140	30
DM-250	37/45	6	63/80	40	400	180/30	90/20	180	45
DM-280	55	8	132	40	400	180/30	90/20	210	60
DM-315	75/90	8	160/180	40	400	180/30	90/20	330	72
DM-355	110/132	10	290/335	40	400	180/30	90/20	410	105

Sungsung Industrial Machinery Crane Control Equipments EC-Series 6

Sungsung Industrial Machinery Crane Control Equipments EC-Series 7

TYPE	MOTOR		TORQUE(kg.m)	DRUM		A	B	C	F	G	H	I	J	K	L	M	N
TYPE	KW	P	TORQUE(kg.m)	D	E	A	B	C	F	G	H	I	J	K	L	M	N
TB-132	2.2/3.7	6	5/6.7	160	80	681	463	218	50	108	132	460	75	190	12	216	12
TB-160	5.5/7.5/11	6	10/14/21.2	200	100	705	490	215	60	127	160	460	85	210	12	216	15
TB-180	15	6	30	250	125	798	523	275	70	139.5	180	484	90	210	12	216	15
TB-200	22	6	40	250	125	811	526	285	80	159	200	532	95	240	12	216	19
TB-225	30	6	53	315	160	913	581	332	93	178	225	630	110	280	16	216	19
TB-250	37/45	6	63/80	355	180	1010	650	360	100	203	250	670	120	300	16	216	24
TB-280	55	8	132	400	200	1022	633	389	110	228.5	280	742	130	320	16	265	24
TB-315	75/90	8	160/180	450	224	1218	780	438	120	254	315	844	150	360	19	265	28
TB-355	110/132	10	290/335	500	250	1463	983	480	120	305	355	957	170	400	22	290	28
TB-400	160/200	10	400/475	560	280	1800	1250	550	120	343	400	1085	180	440	25	325	35

Sungsung Industrial Machinery Crane Control Equipments EC-Series 8

Sungsung Industrial Machinery Crane Control Equipments EC-Series 9

TYPE	MOTOR		TORQUE (kg.m)	DRUM		A	B	C	F	G	H	I	J	K	L	M	N
TYPE	KW	P	TORQUE (kg.m)	D	E	A	B	C	F	G	H	I	J	K	L	M	N
CF-132	2.2/3.7	6	5/6.7	160	80	689	458	231	50	108	132	460	75	190	12	216	12
CF-160	5.5/7.5/11	6	10/14/21.2	200	100	758	496	262	60	127	160	492	85	220	12	216	15
CF-180	15	6	30	250	125	804	509	295	70	139.5	180	510	90	260	12	216	15
CF-200	22	6	40	250	180	830	520	310	80	159	200	540	95	260	12	216	19
CF-225	30	6	53	315	200	945	583	362	93	178	225	650	110	280	16	216	19
CF-250	37/45	6	63/80	355	240	1077	640	437	100	203	250	689	120	300	16	216	24
CF-280	55	8	132	400	300	1153	711	442	110	228.5	280	730	130	340	16	267	24

TYPE	MOTOR		TORQUE (kg.m)	THRUSTOR		D-F TRANS (KVA)	WEIGHT (kg)	DRUM
TYPE	KW	P	TORQUE (kg.m)	liftingpower (kg)	MAX.stroke(mm)	D-F TRANS (KVA)	WEIGHT (kg)	GD2(kg.m2)	WEIGHT(kg)
CF-160	5.5/7.5/11	6	10/14/21.2	80	50	0.5	85	0.4	10
CF-180	15	6	30	120	75	0.5	95	0.5	15
CF-200	22	6	40	120	75	0.5	105	2	32
CF-225	30	6	53	120	75	0.5	120	3.5	50
CF-250	37/45	6	63/80	120	75	0.5	170	2	68
