For Automatic and Continuous Removal of Tramp Iron in Process Industries

ㆍChemical  ㆍGrain
ㆍPlastic  ㆍFoods
ㆍCeramics ㆍTobacco
ㆍRubber  ㆍMinerals

POSITIVE PROTECTION LOW COST LIFETIME DEPENDABILITY

 Inspired by the design advantage of Nd-Fe-B, SIMCO's engineers, in 1986, pioneered a new era in the development of efficient magnetic separation equipment. In the Nd-Fe-B Drum Separator, the exclusive Nd-Fe-B magnet assembly produces a uniform magnetic field up to 100 % more powerful than in ordinary permanent magnetic units!

IDEAL FOR SPOUT SYSTEMS

 Here is a unit that is ideal for process industries wherever granular or pulverized materials are conveyed in closed chutes and spouts. The Nd-Fe-B Drum Separator continuously and automatically removes tramp iron, carries it out of the material flow and returns a clean product to the production process.

WORKING PRINCIPLE IS SIMPLE

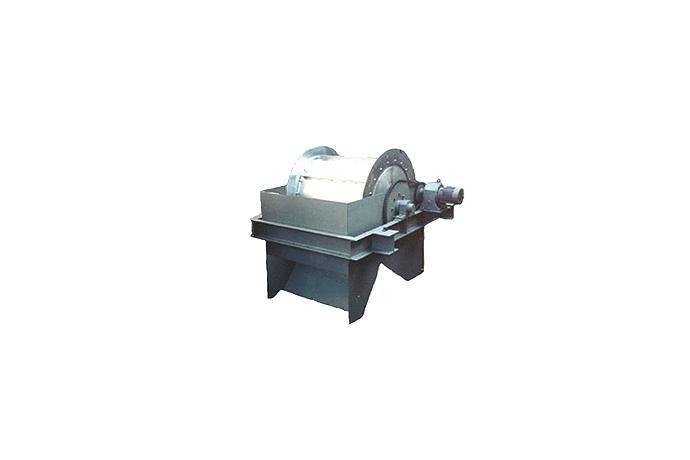

 In operation the SIMCO's Drum Separator consists of a revolving non-magnetic steel cylinder inside a welded steel housing. Material is fed onto the cylinder at the top and is carried over the stationery magnet assembly. The deep, uniform field attracts and holds tramp iron particles beyond the discharge of the clean, non-magnetic products. Tramp iron is released into a separate discharge as it passes out of the magnetic field.

IMPORTANT FEATURES

 Numerous important features, built into the SIMCO's Nd-Fe-B Drum Separator, means superior performance.

ㆍVery high holding power at drum surface assures positive holding and transportation of tramp iron particles.
ㆍFactory sealed bearings.
ㆍOptional spouting arrangements
ㆍFlanged housing mounts easily in any spouting system.
ㆍTotally enclosed, dust-protective housing, no large seals required on Outdia of drum.
