Introduction

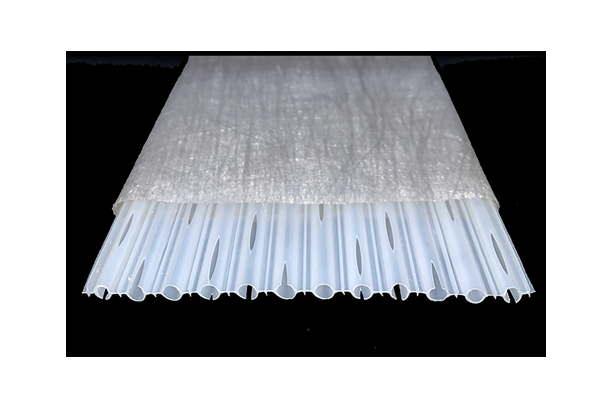

Vacuum consolidation settlement method applies suction through the horizontal pipe directly connected to vertically placed C-PBD or PCD in order to accelerate consolidated settlement of soft ground. This method early suppression of the settling of the remains and compresses the air by giving the loading effect around the 10m diameter even without progressive surcharge and preloading.




Shape and type





Characteristics

1. Ground improvement is possible in a short period of time.
2. Advantageous in reducing installation time or lowering construction costs.
3. Danger of transformation in surrounding ground can be diminished.
4. There is no need for horizontal drain layer.
5. Environmentally friendly construction method allows environmental safety.



Comparison with the Existing Vacuum Consolidation Method

Existing vacuum consolidation


- Defective sealing when vacuum membrane is damaged

- Rapid decrease of vacuum efficiency when the different layers are distributed

Individual vacuum consolidation


- Airtight sheet is not required, and horizontal displacement control is available





Method of installation






construction materials for drains

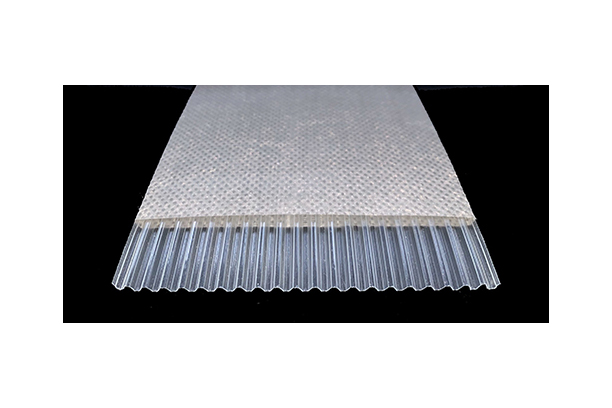

SPE Industry is a venture company which develops construction materials for drains used in the soft ground improvement method. We are developing PBDs, but specialize in developing products such as cylindrical PBD, developed in cooperation with Korea Land and Housing Corporation, PCD, the first innovative technology certified vertical drain, and DHD, a horizontal drain. Under the slogan of “Quality Assurance, Technological Innovation, and Talent Cultivation,” we are already recognized as one of the leading innovators with superior knowhow in the field of vertical drains for soft ground improvement construction. We promise to provide a Total Service System in the field of vertical drain products by bringing to attention the superior quality of our products, available all over the world.
