- SPE Industry is a venture company specializing in the development and manufacturing of drainage construction materials for soft ground improvement methods, offering a range of vertical and horizontal drains such as PBD, C-PBD, PCD, CHD, and vacuum consolidation solutions.SPE Industry is a venture company specializing in the development and manufacturing of drainage construction materials for soft ground improvement methods, offering a range of vertical and horizontal drains such as PBD, C-PBD, PCD, CHD, and vacuum consolidation solutions.
- PBD (Plastic Board Drain): Pocket-type plastic board drains with corrugated (VD55, VD55R, VD60, VD60R) and harmonica-shaped (VD75, VD75R, VD80, VD90, VD80R) cores, combining high-intensity polypropylene cores with filters. Corrugated types are suitable for installation depths around 20m with cost-effectiveness. Harmonica types are widely used for depths around 30m.PBD (Plastic Board Drain): Pocket-type plastic board drains with corrugated (VD55, VD55R, VD60, VD60R) and harmonica-shaped (VD75, VD75R, VD80, VD90, VD80R) cores, combining high-intensity polypropylene cores with filters. Corrugated types are suitable for installation depths around 20m with cost-effectiveness. Harmonica types are widely used for depths around 30m.
- C-PBD (Cylindrical PBD): Cylindrical PBD designed to improve drainage performance issues caused by filter intrusion under lateral earth pressure, featuring a repetitive cylindrical perforated pipe and cross-core structure for stable long-term drainage under high pressure. It boasts 2.3 to 3.2 times higher drainage performance compared to conventional products and overcomes filter dependency. Models include C-PBD, C-PBDR.C-PBD (Cylindrical PBD): Cylindrical PBD designed to improve drainage performance issues caused by filter intrusion under lateral earth pressure, featuring a repetitive cylindrical perforated pipe and cross-core structure for stable long-term drainage under high pressure. It boasts 2.3 to 3.2 times higher drainage performance compared to conventional products and overcomes filter dependency. Models include C-PBD, C-PBDR.

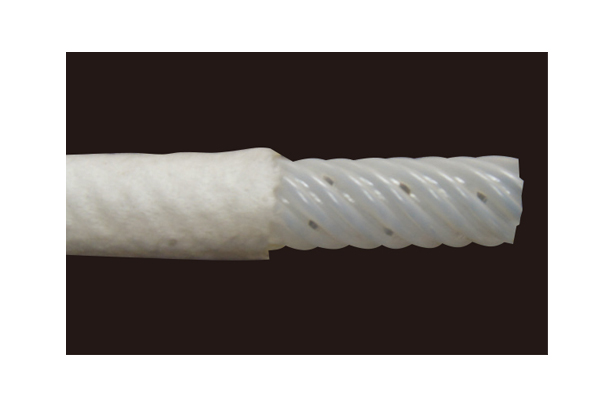

- PCD (Plastic Cylindrical Drain): An asymmetrical spiral perforated pipe, the first vertical drain to receive new technology certification, preventing creasing or cutting by ground deformation or multilayer structures and offering superior drainage efficiency. Models include PCD32, PCD50.PCD (Plastic Cylindrical Drain): An asymmetrical spiral perforated pipe, the first vertical drain to receive new technology certification, preventing creasing or cutting by ground deformation or multilayer structures and offering superior drainage efficiency. Models include PCD32, PCD50.
- CHD (Cylindrical Horizontal Drain): A cylindrical horizontal drain developed as a complete substitute for aggregate drainage layers in soft ground improvement, exhibiting superior water permeability compared to high-quality aggregates. It is a standardized factory-produced item ensuring easy quality control, with models CHD 200, CHD 300, CHDR 200, CHDR 300 available.CHD (Cylindrical Horizontal Drain): A cylindrical horizontal drain developed as a complete substitute for aggregate drainage layers in soft ground improvement, exhibiting superior water permeability compared to high-quality aggregates. It is a standardized factory-produced item ensuring easy quality control, with models CHD 200, CHD 300, CHDR 200, CHDR 300 available.

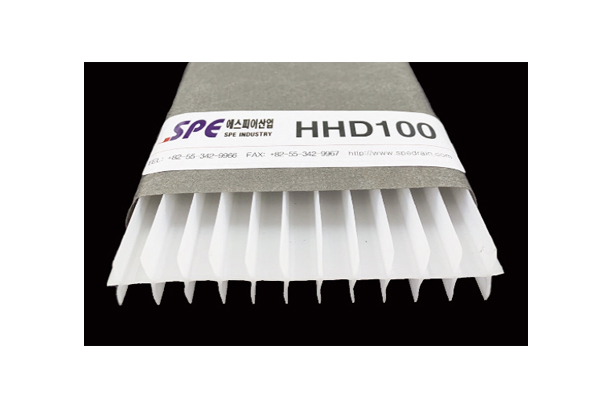

- HHD (Harmonica type Horizontal Drain): A harmonica-type horizontal drain, a fully filtered, prefabricated subsoil drainage system consisting of a plastic inner harmonica core overwrapped with a geotextile filter fabric. Models include HHD100, HHD200, HHD300, HHDR100, HHDR200, HHDR300.HHD (Harmonica type Horizontal Drain): A harmonica-type horizontal drain, a fully filtered, prefabricated subsoil drainage system consisting of a plastic inner harmonica core overwrapped with a geotextile filter fabric. Models include HHD100, HHD200, HHD300, HHDR100, HHDR200, HHDR300.
- S-PBD (Biodegradable PBD): An eco-friendly biodegradable plastic board drain for soft ground improvement, designed to biodegrade by microorganisms in the soil after the consolidation period. It offers additional effects such as soil fertilization and removal of pollutants within the earth, including models like S-VD60, S-VD80, S-CPBD.S-PBD (Biodegradable PBD): An eco-friendly biodegradable plastic board drain for soft ground improvement, designed to biodegrade by microorganisms in the soil after the consolidation period. It offers additional effects such as soil fertilization and removal of pollutants within the earth, including models like S-VD60, S-VD80, S-CPBD.

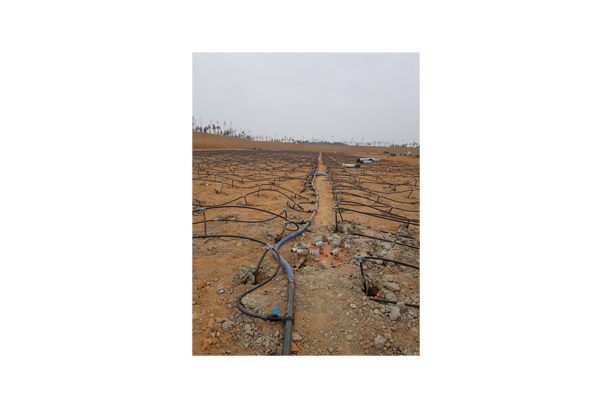

- Vacuum Consolidation: A method applying vacuum pressure through horizontal pipes directly connected to vertically installed C-PBD or PCD to accelerate the consolidation of soft ground. This technique enables rapid and reliable ground improvement, contributing to shorter construction periods and cost savings, and is an environmentally friendly method.Vacuum Consolidation: A method applying vacuum pressure through horizontal pipes directly connected to vertically installed C-PBD or PCD to accelerate the consolidation of soft ground. This technique enables rapid and reliable ground improvement, contributing to shorter construction periods and cost savings, and is an environmentally friendly method.
- Proprietary New Technology Development Capability: Possession of innovative product development capabilities, including cylindrical PBD co-developed with Korea Land and Housing Corporation and the asymmetrical spiral PCD, the first vertical drain to receive new technology certification.Proprietary New Technology Development Capability: Possession of innovative product development capabilities, including cylindrical PBD co-developed with Korea Land and Housing Corporation and the asymmetrical spiral PCD, the first vertical drain to receive new technology certification.
- Superior Drainage Performance and Quality: C-PBD offers 2.3 to 3.2 times higher drainage performance compared to existing products, maintaining stable drainage quality for extended periods even under high lateral pressure.Superior Drainage Performance and Quality: C-PBD offers 2.3 to 3.2 times higher drainage performance compared to existing products, maintaining stable drainage quality for extended periods even under high lateral pressure.
- Cost-effectiveness and Construction Efficiency: Horizontal drains like CHD and HHD significantly reduce construction costs by replacing expensive sand or aggregate, and their lightweight and flexible nature simplifies installation.Cost-effectiveness and Construction Efficiency: Horizontal drains like CHD and HHD significantly reduce construction costs by replacing expensive sand or aggregate, and their lightweight and flexible nature simplifies installation.
- Leading Eco-Friendly Technology: Development of biodegradable PBD (S-PBD) prevents environmental pollution by biodegrading after consolidation and provides additional soil purification functions, showcasing eco-friendly technological prowess.Leading Eco-Friendly Technology: Development of biodegradable PBD (S-PBD) prevents environmental pollution by biodegrading after consolidation and provides additional soil purification functions, showcasing eco-friendly technological prowess.
- Provision of Total Service System: Recognition of quality and capability in the vertical drain sector for soft ground improvement, with a goal to promote product excellence in domestic and international markets and offer an enhanced total service system.Provision of Total Service System: Recognition of quality and capability in the vertical drain sector for soft ground improvement, with a goal to promote product excellence in domestic and international markets and offer an enhanced total service system.

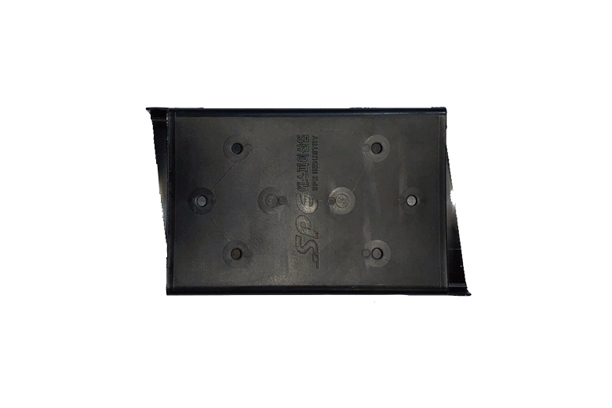

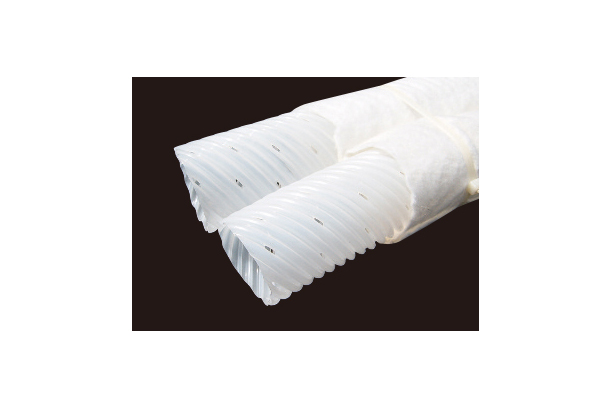

- Diverse Product Portfolio: Offering a comprehensive range of products and solutions, including vertical drains (PBD, C-PBD, PCD, S-PBD), horizontal drains (CHD, HHD, SHD), connectors, and vacuum consolidation methods.Diverse Product Portfolio: Offering a comprehensive range of products and solutions, including vertical drains (PBD, C-PBD, PCD, S-PBD), horizontal drains (CHD, HHD, SHD), connectors, and vacuum consolidation methods.
- Civil Engineering and Construction Industry: Large-scale civil engineering projects such as roads, ports, airports, and landfills requiring soft ground improvement methods.Civil Engineering and Construction Industry: Large-scale civil engineering projects such as roads, ports, airports, and landfills requiring soft ground improvement methods.
- Housing and Urban Development Industry: Involvement in soft ground treatment for housing and urban development projects, evidenced by joint development with Korea Land and Housing Corporation.Housing and Urban Development Industry: Involvement in soft ground treatment for housing and urban development projects, evidenced by joint development with Korea Land and Housing Corporation.
- Environmental Remediation and Restoration Industry: Application in sites requiring soil purification and environmental restoration using biodegradable PBD.Environmental Remediation and Restoration Industry: Application in sites requiring soil purification and environmental restoration using biodegradable PBD.
- Road Construction and Expansion Projects: Application of horizontal drains for replacing sand mat layers and improving underlying soft ground in road construction and expansion projects.Road Construction and Expansion Projects: Application of horizontal drains for replacing sand mat layers and improving underlying soft ground in road construction and expansion projects.
- Vietnam (SPE VINA branch and international patent application)Vietnam (SPE VINA branch and international patent application)
- New Technology Certification: Holds new technology certification for asymmetrical spiral PCD, the first among vertical drains.New Technology Certification: Holds new technology certification for asymmetrical spiral PCD, the first among vertical drains.
- Small and Medium Business Administration Performance Certification: Recognition for superior product performance.Small and Medium Business Administration Performance Certification: Recognition for superior product performance.
- Public Procurement Service Excellent Product Certification: Securing competitiveness in the public procurement market.Public Procurement Service Excellent Product Certification: Securing competitiveness in the public procurement market.
- Korea Expressway Corporation New Technology Registration: Acknowledgment of technological capabilities in the road construction sector.Korea Expressway Corporation New Technology Registration: Acknowledgment of technological capabilities in the road construction sector.
- Patents: Holds 9 domestic patents, including 'Asymmetric Punched Spiral Pipe'.Patents: Holds 9 domestic patents, including 'Asymmetric Punched Spiral Pipe'.
- International Patents: Holds 1 international patent, 'Asymmetric Punched Spiral Pipe' (filed in Vietnam).International Patents: Holds 1 international patent, 'Asymmetric Punched Spiral Pipe' (filed in Vietnam).
- Utility Models: Holds 3 utility models, including 'Anchor plate with serrated fixing frame'.Utility Models: Holds 3 utility models, including 'Anchor plate with serrated fixing frame'.
- Designs: Holds 5 designs, including 'Drain board core material for soft ground'.Designs: Holds 5 designs, including 'Drain board core material for soft ground'.
- Trademarks: Holds 1 trademark, 'PCD'.Trademarks: Holds 1 trademark, 'PCD'.
