This product is manufactured by
SIMACO

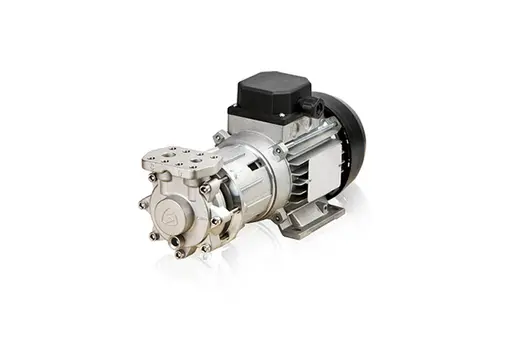

Magnetic driven regenerative turbine electric pumps
Model Name
MD-CX44
Series
-
Data
Catalog-SIMACO-Magnetic driven regenerative turbine electric pumps-MD-CX
Manufacturer information
SIMACO
Regenerative turbine electric pumps, Vertical regenerative turbine electric pumps, Magnetic driven regenerative turbine electric pumps and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SIMACO
Product Type
Machine
Brand
-
SKU
142848
Product Name
Magnetic driven regenerative turbine electric pumps
Model Name
MD-CX44
Size
-
Weight
-
Product Details
| Name | Type | P2(㎾) 50㎐ / 60㎐ |
Dual-Frequency (50/60㎐) |
Q Max 50㎐ | H Max 50㎐ | DN |
|---|---|---|---|---|---|---|
| MD-CX44 [G] | 3 ph | 0.55 / 0.74 | O.D. | 42 | 47 | 1/2 SAE |
| MD-CX44 [SAE] | 3 ph | 0.55 / 0.74 | O.D. | 42 | 47 | 1/2 SAE |
CHARACTERISTICS
- Continuous duty S1.
- 2 pole motor.
- Insulation class F.
- Protection IP42
- Working tolerance: ±10%.
- Limit ambient temperature : +40 °C.
- Normal priming, manometer suction up to 5m.
- For clear waters/oils and medium dilutions, without abrasive substances.
ON REQUEST
- Special voltages.
- Dual-frequency.
- Other IP degrees
- cRUus certified motors for selected tensions
VERSIONS
- ST Water -20/+140℃, Oil -20/+180℃
- WT Water -20/+200℃
- HT Diatermic Oil -20/+350℃
- CT Cryogenic Application -100/+120℃
MATERIALS
- Body AISI316
- Rotor AISI316/PEEK
- Crank shaft AISI316
- Pump shaft CERAMICA
- Bushings SiC
WEIGHT
4.1 ㎏
IN ACCORDANCE WITH
- EN 60034-1
- EN 60034-30
- EN 60335-1
- EN 60335-2-41
DIMENSIONS
HYDRAULIC PERFORMANCE
