This product is manufactured by
SIMACO

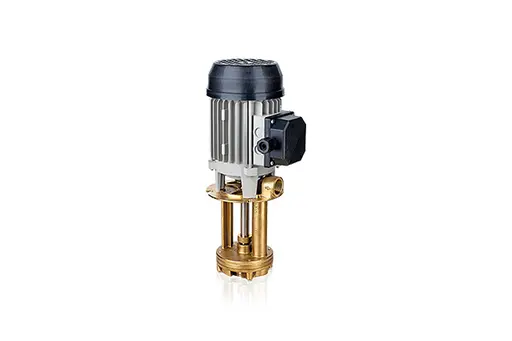

Vertical regenerative turbine electric pumps
Model Name
VP460
Series
-
Data
Catalog-SIMACO-Vertical regenerative turbine electric pumps-VP
Manufacturer information
SIMACO
Regenerative turbine electric pumps, Vertical regenerative turbine electric pumps, Magnetic driven regenerative turbine electric pumps and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SIMACO
Product Type
Machine
Brand
-
SKU
142843
Product Name
Vertical regenerative turbine electric pumps
Model Name
VP460
Size
-
Weight
-
Product Details
| NAME | TYPE | P2 (KW) 50HZ / 60HZ |
DUAL-FREQUENCY (50/60HZ) |
Q MAX 50HZ | H MAX 50HZ | DN |
|---|---|---|---|---|---|---|
| VP 460 | 3 ph | 0.74/1.10 | O.D. | 47 | 56 | 3/4G |
CHARACTERISTICS
- Continuous duty S1.
- 2 pole motor.
- Insulation class F.
- Protection IP42 (IP 54 on demand).
- IE3 efficiency class for 3-phase motors >0,75 kW.
- Working tolerance: +/- 10%.
- Liquid temperature (with anti-freeze additive): -20 °C / +150 °C.
- Limit ambient temperature : -10 °C/+40 °C.
- For clear waters/oils and non-aggressive dilutions, without abrasive substances.
ON REQUEST
- Special voltages.
- 60Hz version.
- Dual-frequency.
- Version for oil 200°C.
- Metal fan-cover.
- UL/CSA.
MATERIALS
- Casing dezincification-resistant CuZn
- Impeller dezincification-resistant CuZn
- Shaft AISI431
WEIGHT
10.45÷10.95 Kg
IN ACCORDANCE WITH
- EN 60034-1
- EN 60034-30
- EN 60335-1
- EN 60335-2-41
DIMENSIONS
HYDRAULIC PERFORMANCE
