Description
[Available with]
- Diverse gear reducrion
Electrical parts & accessories with various protection grades (explosion proof, water proof,etc)
- Junction box with protective cover
- Electric motors
- Limit switches for overhoisting, manual handle
- Remote push button
- Starter panel with various configurations

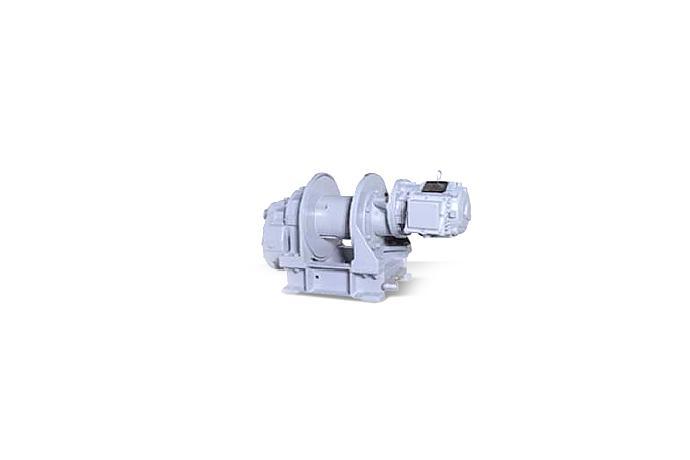

[SPECIFICATION- SMW winch with Electric Motor]
Heavy duty series for offshore application
|
TYPE |
SMW-3E |
SMW-5E |
SMW-9E |
SMW-10E |
SMW-30E |
SMW-50E |
|||||||
|
CAPACITY(kg) |
500 |
1000 |
2000 |
2500 |
3000 |
5000 |
|||||||
|
ROPE SPEED(m/min) |
0~10(0~20) |
0~10(0~20) |
0~20 |
0~20 |
0~12 |
0~8 |
|||||||
|
50Hz |
60Hz |
9 |
10 |
9 |
10 |
18 |
20 |
18 |
20 |
10 |
12 |
7 |
8 |
|
ROPE Dia(m) xLength(m) |
8 x 50 |
10 x 50 |
14 x 50 |
16 x 50 |
16 x 150 |
18 x 125 |
|||||||
|
GEAR RATIO(i) |
1/149 |
1/127 |
1/49 |
1/60 |
1/110 |
1/290 |
|||||||
|
ELEC. MOTOER(kW×POLE) |
1.5 x 4 |
2.2 x 4 |
11 x 6 |
19 x 6 |
11 x 4 |
11 x 4 |
|||||||
|

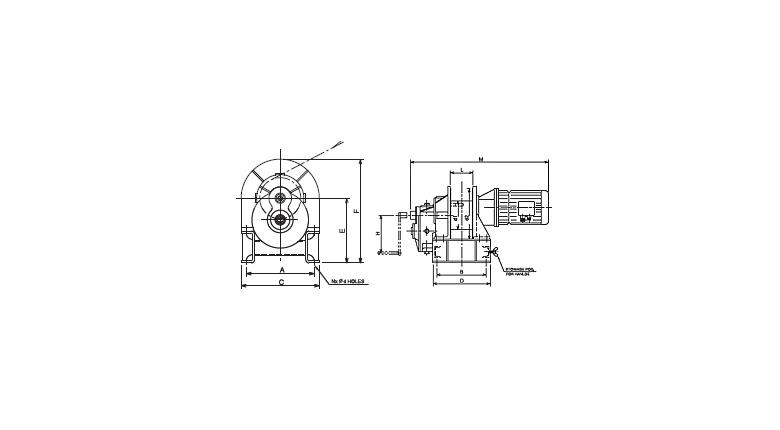

DIMENSION (mm) |
A x B |
280x270 |
330x330 |
360x410 |
440x440 |
390x677 |
350x900 |
||||||
|
C x D |
320x325 |
380x380 |
410x465 |
495x510 |
575x817 |
660x1330 |
|||||||
|
E x F |
240x395 |
315x510 |
400x605 |
430x678 |
460x737 |
595x915 |
|||||||
|
d1 x d2 |
165.2x300 |
190.7x355 |
216x385 |
265x450 |
267.4x510 |
355.6x586 |
|||||||
|
N x Ød |
4x18 |
4x21 |
4x25 |
4x25 |
8x18 |
8x22 |
|||||||
|
M |
830 |
916 |
1091 |
1278 |
1829 |
2109 |
|||||||
|
L |
120 |
140 |
226 |
260 |
232 |
610 |
|||||||
|
H |
200 |
250 |
275 |
275 |
300 |
330 |
|||||||
|
NET WEIGHT(KG)(ABT.) |
130 |
200 |
300 |
440 |
780 |
1350 |
|||||||
Pictorial and dimensional data is subject to change without notice.
The information presented in this catalogue is based on technical data and test results of nominal units.
Wire rope guides
- For normal wire rope construction (18x7,Non-rotating type) the maximum advisable fleet angle is 4 degrees
- With turn free wire rope, this is maximum of 2.5 degrees.
