Manufacturer
SHINMYUNG TECH
Product Type
Machine
Brand
-
SKU
37115
Product Name

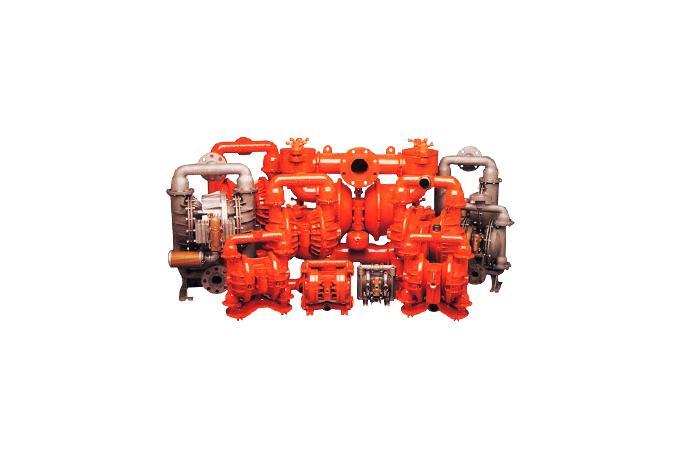

Air Driven Diaphragm Pump
Model Name
PV200/PX200, PV4/PX4, PV8/PX8, PV15/PX15, PV20
Size
-
Weight
-
Product Details
[SPECIFICATION]
|
MODEL |
PV200/PX200 |
PV4/PX4 |
PV8/PX8 |
PV15/PX15 |
PV20 |
|
|
CAPACITY |
5 ㎥/hr |
10 ㎥/hr |
20 ㎥/hr |
25 ㎥/hr |
40 ㎥/hr |
|
|
SUCTION LIFT |
DRY |
- 5.4 m |
- 7.3 m |
- 7.3 m |
- 7.6 m |
- 4.3 m |
|
WET |
- 9.3 m |
- 9.5 m |
- 9.5 m |
- 9.5 m |
- 8.6 m |
|
|
DISCHARGE HEAD |
30 m |
30 m |
35 m |
35 m |
30 m |
|
|
SUCTION SIZE |
1"(25A) |
1-1/2"(40A) |
2"(50A) |
3"(80A) |
4"(100A) |
|
|
DISCHARGE SIZE |
1"(25A) |
1-1/2"(40A) |
2"(50A) |
3"(80A) |
4"(100A) |
|
HAnd Piston Pump
[SPECIFICATION]
|
CAPACITY |
80ℓ/min |
|
SUCTION LIFT |
-8m |
|
DISCHARGE HEAD |
10m |
|
SUCTION SIZE |
1-1/2"±(40A) |
|
DISCHARGE SIZE |
1-1/2"±(40A) |
Hand Wing Pump
[SPECIFICATION]
|
CAPACITY |
30-70ℓ/min |
|
SUCTION LIFT |
-8m |
|
DISCHARGE HEAD |
10m |
|
SUCTION SIZE |
~1-1/2"±(40A) |
|
DISCHARGE SIZE |
~1-1/2"±(40A) |
