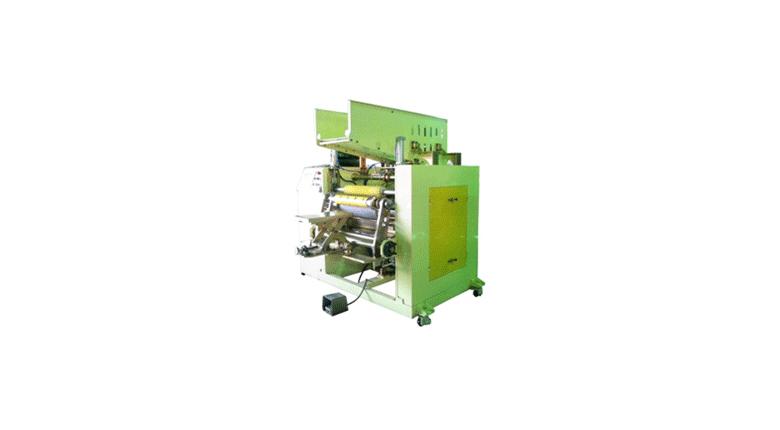

A fully automatic machine designed for the rewinding of stretch film from jumbo mother roll into small rolls with the preset length. The machine has high performance and outputs by using the latest developed technologies
▶ Features
- Mother roll chucking : Foot switch
- Adjustable height stand for mother roll
- Automatic paper core feeding
- Automatic saw cutting and take out system
- Touch screen PLC system
| SPECIFICATIONS | |
|
Power of main motor |
2.2kw +Inverter |
|
Electric Power Supply |
380V, 50Hz, 3ph |
|
Compressed Air |
7-10kg/㎠ |
| Material film | |
|
Material handled |
PE Film |
|
Film width |
500mm |
|
Film thickness |
0.013~0.02mm |
|
Unwinding |
|
|
Paper core ID |
Ø76 x 520L |
|
Mother roll diameter |
Max. Ø300 |
|
Unwind |
Surface driven |
|
Unwinder shaft |
Side Chucking |
|
Rewinding |
|
|
Paper core diameter |
Ø76 x 5t x 520L |
|
Rewinding diameter. |
Max. Ø160 |
|
Rewinding length |
Max. 500m/roll (at 0.02mm thick basis) |
|
Rewinding speed |
600~1000m/min |
|
Paper core supply |
Automatic loading |
|
Film Cutting method |
Automatic Saw cutting |
|
Core Chucking & Take out |
Automatic chucking |
|
Roll Film Takeout |
Auto type |
|
Control |
|
|
Control |
Auto PLC system |
