Shinjin Precision

Shinjin Precision

Dual Flow Divider Valve

Model

Series

Valves


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

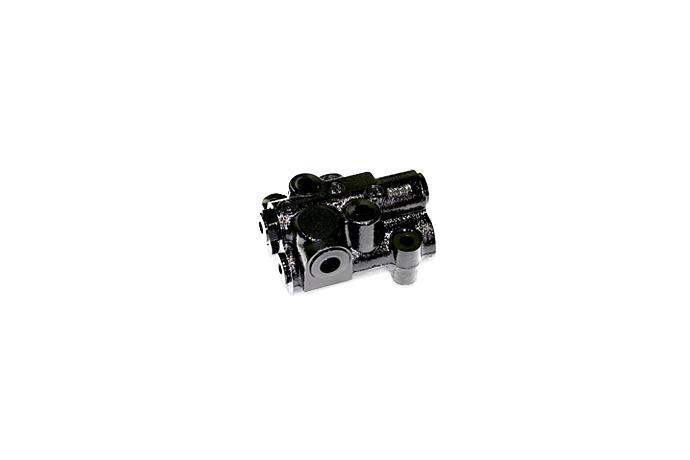

Shinjin Precision Dual Flow Divider Valve

Flow control and priority valve is combined as a one part: The Dual Flow Divider. The flow control part handles the flow for the vehicle braking control.
The priority valve part controls the flow and pressure of the Power Steering Unit. It is compact and cost effective solution for small off-road vehicles.


Specifications

Max. Flow : 85 lpm
Control Flow for Brake : 3.0 ~4.5 lpm
Relief Pressure : 120 bar at 25 lpm
Control Pressure : 10.5 bar
Steering System :

Internal Pilot, Dynamic Signal Type

Download

Dual Flow Divider Valve
