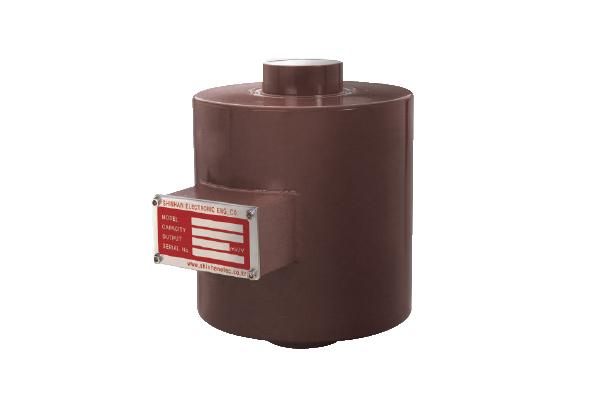

Compression Load Cell
Model Name
MCL Series
Data
-
Manufacturer information
provider logo
SHINHAN ELECTRIONICSElectric load limiter for crane and hoist manufacturer, LMI for Mobile crane
Problem with product info?
Update request
Manufacturer
SHINHAN ELECTRIONICS
Brand
-
SKU
23002
Product Name
Compression Load Cell
Model Name
MCL Series
Size
-
Weight
-
Product Details

특별히 실시간으로 로드셀의 기능을 파악

모델 MCL 시리즈는 단단한 원통으로 구조가 되어있으므로 산업용 계측시스템  및 호퍼 계량 시스템에 적합



대용량 원통형 타잎 로드셀은 특히 철구조물의 해상 플랜트를 계량하기위하여사용되는 로드셀

마이크로프로세서가 내장된 이종류의 디지털 로드셀은 실하중, 에러메시지 그리고 리모트콘트롤러 셋팅이 쉬움.

본 로드셀은 대용량 및 방수등급이 IP68이 요구되는 가장 가혹한 환경을 위하여 원통으로 밀봉되어 있으며 내부식성 및 내구성을 갖는 로드셀입니다.



■ 특성

ㆍ실시간 하중 표시

ㆍ리모콘을 이용 손 쉬운 조작

ㆍ하중에 비례하는 전압 및 통신 (RS-422) 출력 [option]



■ 기능

ㆍ전면 모니터를 이용한 실시간 하중표시

ㆍ출력 (0~5V)

ㆍ실시간 스테인게이지 전압 표시

ㆍ리모콘을 이용 영점 조정

ㆍ리모콘을 이용한 모드 선택 기능 [strain gage output, Actual weight]

ㆍDisplay

   - Actual weight

   - Load cell output signal

   - Error message



■ 사양

ㆍ공급전압 : VDC7Volts~ VDC20Volts

ㆍ소비전력 : Max.0.3Watts

ㆍ사용온도 : -10 ℃ 70 ℃

ㆍ보관온도 : -20℃ ~ +70℃

ㆍ습도 : Under 95%RH



■ 세부사양

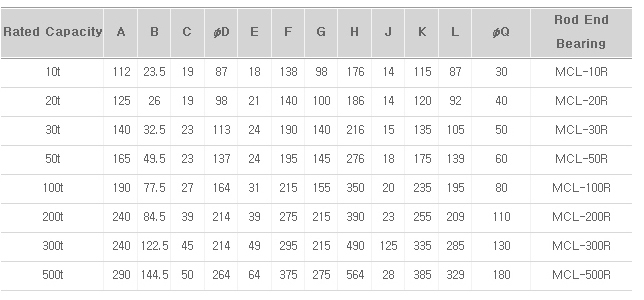

■ 치수(mm)
