summary

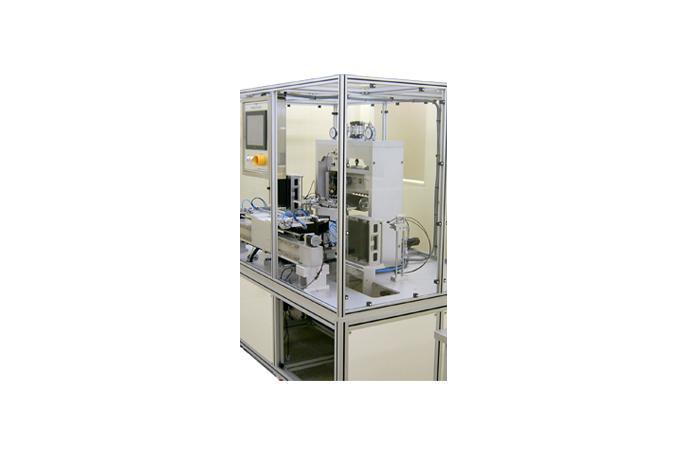

This equipment, as it is In-line equipment of single wafer way to perform End Seal after injecting liquid crystal into LCD cell, performs pressurizing, cleaning, align, UV intensifier dispensing, UV irradiation.

Specifications
- Work size : 1 ~ 3.5” Stick
- Stick Size : 460mm x 0.2 , 0.4 , 0.6 , 0.8 , 1.0t
- Cassette load capacity : 40Stick / Cassette
- Cassette loading : Manual loading
- Cassette unloading : Manual unloading
- Cleaning type : Auto cleaning
- Alignment type : CCD auto alignment
- Dispensing type : Auto type precision dispense
- UV Exposure type : Auto type UV Exposure
- Machine size : W3000 x D1800 x H2200
- Machine weight : ≒ 2 Ton


Product Features
- Compact Design
- Flow Process by Rotation
- Fully Automation In-Line
(Cleaning, Dispensing, UV Cure)
- Low Running Cost
- Minimized Install Space
