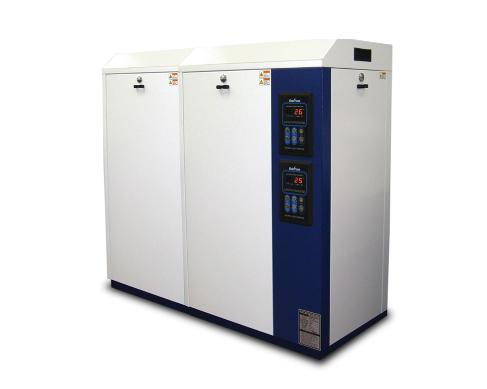

AH Series products are stand-alone electrode type humidifiers that are designed as the control box integrated structure for user convenience.
They can be easily installed on air conditioning units that are not equipped with humidifiers or in places where humidifiers are needed.
The humidity sensor attached to the unit allows automatic operation by utilizing the external relative signal or humidity valve.
The products consist of the standard type products with the capacity of 2.0kg/h ~ 90kg/h and non-standard products with the capacity of 91 kg/h ~ 360kg/h.
SPEC
AH060-2
AH090-3(7)
Voltage
3P 220V 60hz
3P 380-690V
Capacity
60[kg/h]
90[kg/h]
Consumption
45.0[kW]
67.5[kW]
Rated current
118..1[A]
102.6[A] / 380V
Cylinder
CY030-2 X 2Cycle
CY045-3 X 2Cycle
Control power
1P 220VAC 60Hz / by Transformer (380V)
Control mode
Remote On/Off Signal 2Step
Water supply
1/4inch copper tube, 2~8[bar], 15A Socket
Drainage
ID22[mm]heat resistance hose, 8ℓ /min, 25A Socket
WxDxH / Weight
920 x 375 x 890[mm] / 67[kg] (260mm height option base)
