product Image

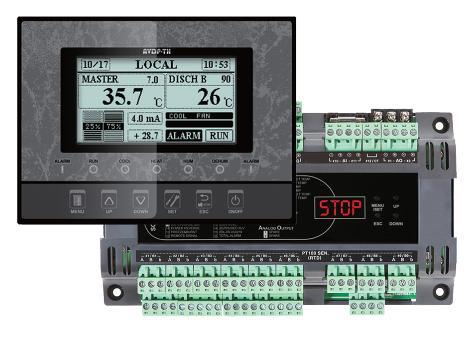

Condensing unit - Cold storage application
Model Name
-
Series
Controller
View All
Data
-
Manufacturer information
provider logo
SEUNGIL ELECTRONICS

Industrial controller, Electrode steam humidifier, Configurable controller, Temperature humidity sensor, Automatic control system, Temperature humidity converter

Problem with product info?
Update request
Manufacturer
SEUNGIL ELECTRONICS
Product Type
Machine
Brand
-
SKU
130112
Product Name
Condensing unit - Cold storage application
Model Name
-
Size
-
Weight
-
Product Details

Power

100-240VAC 50/60Hz

I/O

DI

16 points(24VDC)

DO

17 points(250V 3A) SSR

AI

9ch(PT100Ω)

2ch(4-20mA)

1ch(CT)

AO

2ch(4-20mA or 0-10VDC)

Comm.

1ch Master / Slave

1ch RS-485

1ch Display

1ch Remote Display







FEATURES

Applicable to various compressors, optimized logic for stable and efficient compressor control. Multi I/O port enables cost reduction without additional sequence circuit. Recommended for cold storage unit control, available to control maximum 3 rooms by 1 controller.







DIMENSIONS
