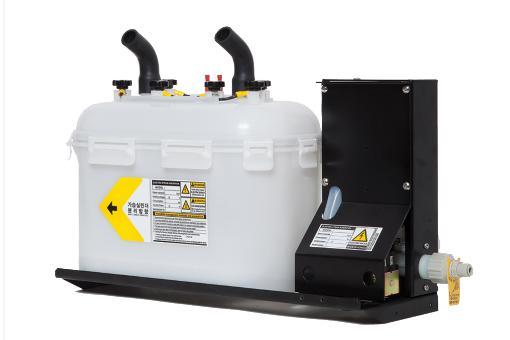

FH Series products are electrode-type humidifiers that have an improved design compared to other existing products.
The height of the unit is reduced by more than 50% to allow easy installation on existing air conditioners, coolers, or heaters.
They are easy to be maintained due to their completely sealed container structure. Since the product is designed with a ratio similar to conventional electric heating type humidifiers, it can easily replace existing electric heating type humidifiers.
SPEC
WH004-1
WH004-2
WH004-3
Voltage
1P 220V
3P 220V
3P 380V
Capacity
4[kg/h]
Consumption
3.0[kW]
Rated current
12.7[A]
7.9[A]
4.6[A]
Cylinder
CW004-1
CW004-2
CW004-3
Water supply
1P 220VAC, 1/4inch cooper tube, 2~8[bar]
Drainage
1P 220VAC, OD13mm
WxDxH / Weight
502 x 180 x 300[mm] / 3.9[kg] *CA : 5.3[kg]
1. This product should be installed on the drain structure.
2. Add the code "CA" for controller attached model. ex) WH008-3CA
